How to Use a Multimeter to Test an Outlet (4 Best Ways)

Hey there, DIY enthusiasts! You’re in for a treat because today, we’re diving into how to use a multimeter to test an outlet.

Quick Summary:

  • Testing for Power: Pop the red probe into the short slot and the black one into the long slot of your outlet. If everything works and you have 120 volts in your system.
  • Grounding Test: For this, move the black probe to either the grounding screw or the rounded ground slot. Your reading shouldn’t change much here.
  • Polarity Check: Swap the probes – red goes to the long slot and black to the short one. It’s a quick way to ensure the wiring’s got its directions right.
  • Resistance Test: Touch both probes to the outlet’s brass terminals to check resistance. This is like feeling your outlet’s pulse to ensure it’s healthy.

We’ll go step-by-step, from setting up your multimeter to deciphering what those readings mean. So grab your multimeter, roll up your sleeves, and get started.

Using a Multimeter to Test Outlets

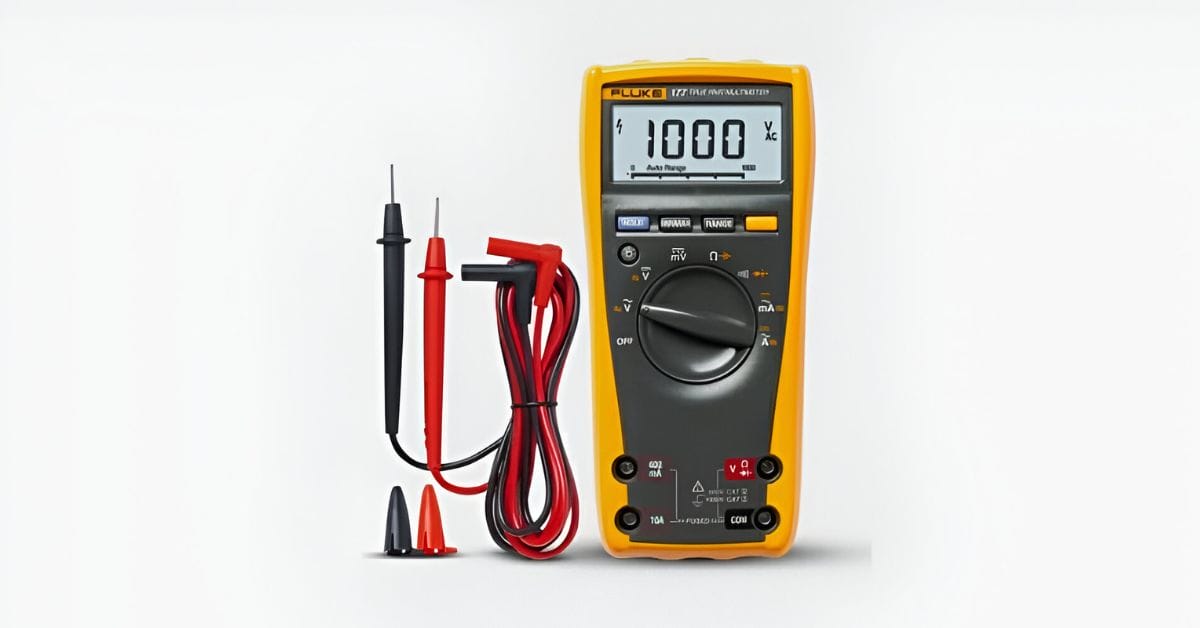

Let’s talk multimeters – the indispensable tools in your DIY kit. Multimeters come in two types: analog and digital.

Think of the analog multimeter as your old-school, trusty tape measure. It’s usually more budget-friendly and has a needle that dances along a scale to give you your readings. Sure, it’s got charm, but sometimes, it can be a bit tough to read those exact numbers.

On the flip side, we’ve got the digital multimeter. It’s like the high-tech laser measure of the multimeter world. Typically, they’re a bit pricier, but they make up for it with precision. These guys display your readings clearly as day on an LCD screen, leaving no room for guesswork.

So, whether you’re going old-school analog or high-tech digital, both types are great for checking if that power outlet is ready to roll. Pick the one that suits your style and budget, and you’re all set to tackle those electrical mysteries!


Testing an Outlet for Power

let’s roll up our sleeves and get into one of the most essential skills in our home improvement toolkit – testing if power is reaching an outlet. It’s like being a detective, but we’re solving electrical puzzles instead of solving mysteries. I’ve been there and done that, and I’m here to walk you through it step by step.

Step 1: Set the Multimeter

First off, grab your multimeter. This little gadget is your best friend when it comes to electrical work. You’ll want to set it to measure AC voltage – look for the wavy line symbol.

A person is setting up a multimeter before testing a wall outlet
Video | AMRE Supply

Select a range that covers your home’s voltage, up to 120 or 240 volts, depending on where you live. It’s like tuning your guitar to the right note before you start playing.

Step 2: Insert the Probes

Now, it’s time to get those probes in place. You’ve got two slots to work with – one’s a bit shorter (that’s your hot connection), and the other’s longer (that’s neutral).

A person is inserting the multimeter's probe into an outlet
Video | AMRE Supply

If you’re like me and like things to match, put the red probe in the short slot and the black probe in the longer one. It’s AC voltage, so if you mix them up, no sweat – it’ll work either way.

Step 3: Check the Reading

With your probes snugly in the slots, it’s showtime. Take a look at your multimeter. If there’s power in the outlet, you’ll see some action – a spinning dial on an analog multimeter or some digits on a digital one.

A multimeter reading of 118.3 while a man is testing the wall outlet
Video | AMRE Supply

A normal reading? It’ll be around your main supply voltage, usually between 110-120 volts if you’re in the US.

But what if there’s no movement, or the reading’s low? Well, that’s your cue that something’s up. Maybe the circuit breaker tripped, or there’s a wiring issue. I remember finding an outlet dead as a doornail, and the breaker had tripped. A quick flip, and we were back in business.

So there you have it, folks – testing a power outlet broken down into simple steps. Keep these tips in your back pocket, and you’ll tackle electrical projects confidently soon! Stay safe, and happy DIY-ing!


Testing if an Outlet is Properly Grounded

Let’s talk about something important in our homes that often goes unnoticed – ensuring our outlets are properly grounded. It’s like making sure your house has a solid foundation.

I’ve had a few experiences where this little check saved me from potential hazards.

Step 1: Get Your Multimeter Ready

Grab your multimeter – this handy tool is like your DIY sidekick. Set it to measure AC voltage because we deal with it in our home outlets.

A person setting the multimeter to use for outlet testing
Video | AMRE Supply

Step 2: Probe Placement

Now, take the red probe – your live wire friend – and plug it into the small outlet slot. This slot is usually the hot one. Then, introduce the black probe – your neutral buddy – to the ground slot. That’s the rounded, U-shaped friend waiting to join the party. Sometimes, I think of it as setting up a little meeting between them.

A person is inserting multimeter's probe to the wall outlet
Video | AMRE Supply

Step 3: Check the Reading

With your probes in place, it’s time for the moment of truth. Check the reading on your multimeter. Ensure there’s no current outside the outlet.

A person demonstrates how to test an outlet using a multimeter
Video | AMRE Supply

If your multimeter reads more than 0.001 volts on the casing, it’s a red flag. In that case, you’ll want to turn off the power and look closer to ensure everything’s as grounded as possible.

I remember once I found an outlet that wasn’t grounded properly. It was like finding out your car’s been running without a seatbelt – a bit unsettling.


Checking if the Wiring is Proper or Reversed

Check if your outlet’s wiring is playing by the rules or if it’s got its wires crossed, literally. I’ve encountered this a few times, and let me tell you, it’s an interesting puzzle to solve.

Step 1: Gear Up with Your Multimeter

First, grab your trusty multimeter. I always feel like a bit of an electrical detective when I’ve got mine in hand. Make sure it’s set to measure AC voltage – that’s your bread and butter for home electrical work.

A person is pointing at a multimeter with 1 reading on the screen
Video | WikiPeedika

Step 2: Insert the Probes

Normally, you’d put the red probe (that’s your live wire buddy) into the short slot (hot) and the black probe (your neutral sidekick) into the long slot (neutral).

But in this case, switch it up – red goes into the long slot, and black goes into the short one. It feels like wearing your shirt inside out, but trust me, it’s all part of the plan.

A multimeter with wires attached to its probe
Video | WikiPeedika

Step 3: Check the Reading

Look at your multimeter with your probes in their ‘reversed’ positions. If it shows a reading, then bingo – your outlet’s wiring is reversed.

A digital multimeter on a desk next to a keyboard
Video | WikiPeedika

I remember the first time I found a reversed outlet in my old workshop. It was like discovering a secret passage – unexpected but thrilling.

If the wiring is reversed, don’t sweat it too much. This isn’t a big deal for most household gadgets and gizmos. However, if you’re into more sophisticated stuff, like certain electronics or specialty equipment, that’s when you need to pay attention.


Testing an Outlet for Resistance

Testing an outlet for resistance might sound technical, but it’s pretty straightforward. It’s like putting together a puzzle; the whole picture becomes clear once you know where the pieces go.

Step 1: Set Up Your Multimeter

Start by grabbing your multimeter. Mine’s been through countless projects and never misses a beat. You’ll want to set it to measure ohms, which is the setting for checking resistance.

I remember this one time in a remodel where this step was crucial for identifying a faulty circuit.

Step 2: Touch the Multimeter Probes to the Outlet

Now, find the outlet’s two brass terminals – where you’ll be testing.

Gently touch the multimeter’s probes to them. In a project last summer, careful testing was key to diagnosing a wiring issue we couldn’t see.

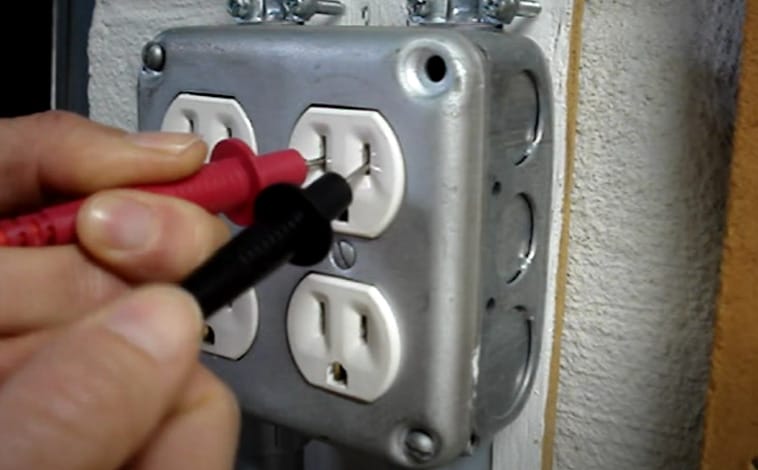

A person is using a multimeter to test an electrical outlet
Video | Know How Now

Step 3: Read the Resistance

Watch your multimeter for a resistance reading. This will give you insight into the outlet’s condition.

I’ve had instances, like in an old cabin renovation, where getting no reading was the first clue to a deeper power supply issue.

Step 4: Test with a Load (Optional)

For a more comprehensive check, plug in a known working appliance. I did this once when I suspected an outlet issue in a kitchen; the appliance not working confirmed the outlet was faulty.

Step 5: Diagnose and Action

If you’re not getting a resistance reading, it might be time for a professional look or to consider an outlet replacement. I’ve been in situations where this decision was necessary to ensure the safety and functionality of the home’s electrical system.

Step-by-step testing an outlet for resistance is a valuable skill in your DIY toolkit. Each step, informed by experiences from various projects, ensures your electrical systems are working and safe. Keep that multimeter handy – it’s an invaluable tool for these revealing tests.


Multimeter Mysteries: Decoding and Solving Outlet Testing Puzzles

Let’s investigate some troubleshooting tips for when those multimeter readings start acting. It’s like decoding a mystery; I have some clues for you!

IssueTroubleshooting Tips
Zero or Low ReadingEver got a zero or super low reading and scratched your head? Check if your multimeter’s set right. Also, double-check those probe connections – are they snug and in the right slots?
Fluctuating ReadingsEver got a zero or super low reading and scratched your head? Check if your multimeter’s set right. It’s like ensuring you’re using a drill, not a hairdryer. Also, double-check those probe connections – are they snug and in the right slots?
Unexpectedly High ReadingIf the numbers jump around like popcorn, it might be a loose connection. It’s like I found a wobbly tile once – I just needed a bit of tightening. Also, test your multimeter on another known working outlet to rule out it being a tool issue.
Continuously OL (Open Loop)If it’s reading ‘OL’ all the time, you might be dealing with an open circuit. Check for any visible damage or loose wiring.
Inconsistent Ground ReadingGround readings playing hide and seek? Ensure your grounding is correctly done. Sometimes, it could be a grounding issue in your home wiring.

Remember, troubleshooting with a multimeter is like detective work – you must piece together the clues. Stay curious, stay careful, and don’t hesitate to call in a pro if things get too wacky. Safety first, fun always!
