What is VAC in Electrical? (Guide)

Have you ever scratched your head wondering what VAC means in the electrical world? You’re not alone. It’s a term thrown around a lot, but not everyone knows what it stands for.

Generally, VAC is just a term used in electrical for volts AC. You are probably familiar with DC volts; they represent direct current voltage. In the same way, VAC represents alternating current voltage. The only thing you should know is both VDC and VAC represent voltages.

So, strap in and get ready for an electrifying ride. By the end of this article, you’ll have a solid understanding of VAC and its role in our everyday lives: no more confusion, only clarity. Let’s get started, shall we?

Everything You Need to Know about VAC

Let’s dive into the world of VAC – that’s Volts AC for those new to the game. You’ve probably seen these numbers like 110 VAC or 120 VAC on various electronics, maybe on your computer, your trusty multimeter, or even current transformers. But what’s the story behind these numbers?

In my years on the job, I’ve seen VAC as more than just a label; it’s the heartbeat of alternating current circuits. Now, this isn’t some mysterious ‘VAC power’; it’s simply how we measure the voltage in these circuits.

You must understand what AC and DC are to get the full picture. I’ve worked with both, and let me tell you, they’re different beasts.

Here’s how the numbers stack up when we compare the two:

ParameterAC (Alternating Current)DC (Direct Current)
Current FlowChanges DirectionIn a Single Direction
Power Loss in TransmissionLowHigh
Use CasesPower supply in homes and commercial buildingsBatteries, Electronics

Direct Current, or DC, is like a one-way street – it flows in a single direction, from negative to positive. Think of your car battery, a classic example of DC power in action.

Alternating Current, or AC, on the other hand, is more like a busy highway with traffic moving back and forth. This type of power switches directions – from negative to positive, then back again. Your home’s power supply? That’s AC power for you.

So, what about VDC and VAC?

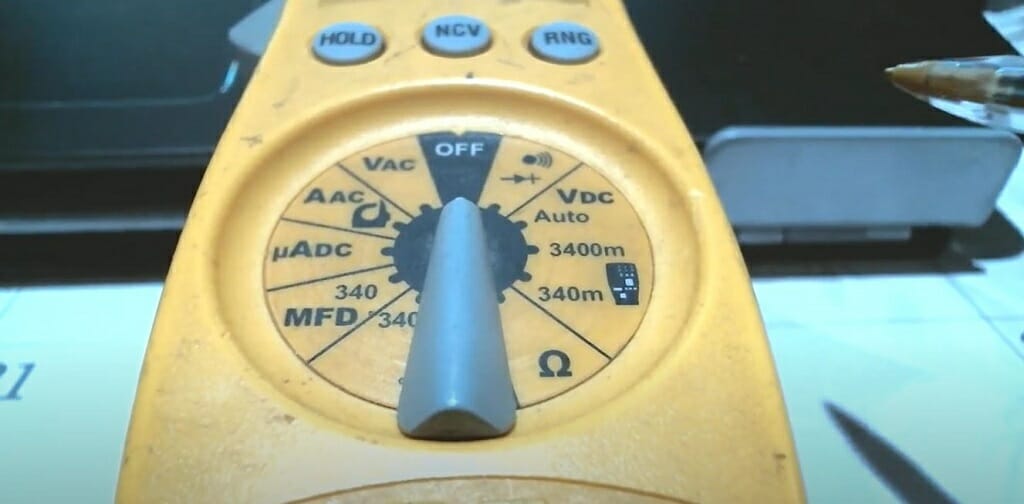

Simply put, VDC is all about the voltage in a DC system, and VAC? That’s our main character today, representing the voltage in an AC system. I’ve used my multimeter more times than I can count to check these values, especially when figuring out what kind of circuit I’m dealing with. It’s essential to know your way around these settings.

Remember, understanding VAC isn’t just technical jargon; it’s about knowing the pulse of the electrical world around us, from setting up stage lighting to rewiring a kitchen; getting VAC right has been key to making things work smoothly and safely.


Where Can I Find VAC?

Let’s get into where you can find VAC in your everyday life. If you’re in North America like I am, you’re most likely dealing with 110 or 120 VACs in your home.

This is the standard for most of your household devices. You’ll see these numbers on all sorts of things running on alternating current. But take a trip across the pond to Europe, and you’ll find a different ball game with 220 VAC or 240 VAC.

While working with various electrical systems, I learned a fun fact: 120 VAC doesn’t just stay at 120 volts. It dances up and down, going from 170V to zero and back up to 170V again, all within a blink of an eye. This happens because the alternating current cycles 60 times every second – hence, most AC power has a frequency of 60Hz.

Now, let’s talk about RMS Voltage. The RMS, or Root Mean Square voltage of 120 VAC, is fascinating. Even though it peaks at 170V, its effective power is equivalent to 120 DC volts. I’ve explained this to many homeowners and DIY enthusiasts, and it’s always a lightbulb moment!

Calculating the RMS Value

Here’s how you calculate the RMS value – a formula I’ve used several times on various projects.

The equation goes like this: VRMS = VPEAK1/√2. So, with a peak voltage of 170V, you crunch the numbers and get VRMS = 1701/√2, roughly reaching 120.21V.

Remember, understanding these concepts isn’t just academic. Knowing where and how VAC is used can make a huge difference in how you handle and understand the electrical gadgets and systems in your life.


Why Do We Use VAC?

Let’s talk about why VAC is the main player in our electrical systems. In my days working with all sorts of power setups, I’ve learned that it’s all about efficiency and practicality.

Here’s the deal: When you’re moving energy, especially electricity, you’ll lose some of it. To combat this in the electrical world, generators generate high-voltage electricity. High voltage means less energy loss, and that’s a big win for efficiency. And guess what? They send this power out in AC or alternating current.

Now, here’s the twist. Our homes don’t need this high-octane, high-voltage power. It’s like trying to drink from a fire hose – too much, too fast.

So, what do we do? We use something called a step-down transformer. This nifty device takes that high-voltage AC power and tones it down to a level that’s just right for our homes.

But wait, there’s more. Most gadgets and electronic devices aren’t big fans of AC power. They prefer the chill vibe of low-voltage DC or direct current. So, how do we bridge this gap? With a bridge rectifier, of course! This little hero converts the lower-voltage AC power into the DC power that our devices love.

Whether I’m setting up a home theater or rewiring a vintage lamp, knowing how and why we use VAC makes all the difference in getting the job done right.


Frequently Asked Questions

  • How Does VAC Affect The Performance Of Electrical Appliances?
    • The VAC rating of an appliance is crucial for its performance. Appliances are designed to operate at a specific VAC, which ensures they run efficiently and safely. Using an appliance at a different VAC than intended can lead to underperformance, damage, or even safety hazards.
  • What Happens If VAC Fluctuates In My Home?
    • Fluctuations in VAC can cause flickering lights, inconsistent performance of appliances, and, in severe cases, damage to electrical devices. It’s important to have stable VAC levels to maintain the longevity and functionality of your home’s electrical system.
  • Can I Convert VDC To VAC? How?
    • Yes, you can convert VDC to VAC using an inverter. An inverter changes the direct current (DC) from a low-voltage DC source (like a battery) into alternating current (AC), which can then be used to power AC appliances.
  • Why Is VAC Used For Transmitting Power Over Long Distances?
    • VAC is used for power transmission over long distances because it can easily transform into higher or lower voltages. This flexibility allows for efficient transmission over power lines with minimal energy loss.
  • How Does The Frequency Of VAC Affect Electrical Devices?
    • The frequency of VAC (measured in Hertz) impacts the operation of many electrical devices. Devices are often designed for a specific frequency (like 60Hz in North America). Using a device at a different frequency can lead to improper function or damage.
  • What Safety Precautions Should Be Taken When Working With VAC?
    • Always turn off the power source before working on any electrical systems. Use insulated tools, wear protective gear, and ensure you have a good understanding of the system you’re working with. When in doubt, consult a professional electrician.
  • How Can I Identify The VAC Rating Of An Appliance Or Circuit?
    • You can usually find the VAC rating on the appliance’s nameplate or in the user manual. Check the breaker panel or consult the building’s electrical plans for circuits. Always verify VAC ratings before connecting appliances to ensure compatibility.
  • Does VAC Differ In Residential And Commercial Buildings?
    • The basic VAC level (like 120 VAC in North America) is typically the same in residential and commercial buildings. However, commercial buildings may have circuits with high heavy-duty equipment.
