How to Test a Voltage Regulator (Guide)

Hey everyone, let’s talk about keeping your car in top-notch shape, focusing on a crucial but often overlooked part – the voltage regulator. It’s like the unsung hero of your car’s electrical system. Keeping tabs on your voltage regulator is key to a smooth ride.

I’ve seen a few situations where a simple check could have saved a lot of trouble. It’s like keeping an eye on the little things to avoid bigger issues down the line.

In general, here’s how to test a voltage regulator:

  • Step 1: Set your multimeter to measure volts.
  • Step 2: With your car off, connect the multimeter to your battery (red to positive, black to negative) to check the battery’s voltage.
  • Step 3: Start your car’s engine and observe the voltage on the multimeter, which should now be above 13V.
  • Step 4: Analyze the readings; if the voltage doesn’t rise as expected, it’s a hint that your voltage regulator might need attention.

We will break it down step by step, ensuring you’ve got all the know-how you need to tackle this task like a pro. It’s all about getting under the hood and understanding what makes your car tick.

Tools for Testing a Car’s Voltage Regulator

Let’s discuss the tools you’ll need to test your car’s voltage regulator.

First Up the Car Battery. Make sure it’s accessible and ready for testing.

Next, A Digital Multimeter with Probes. This gadget is your detective’s magnifying glass. A good digital multimeter with probes is essential. I’ve got one that’s been with me through thick and thin – it’s seen more car hoods than a cat on a warm day.

Don’t Forget the Battery Clips. Battery clips are like your trusty sidekick. They hold the probes in place, so you don’t have to.

And Finally, A Volunteer. Yes, you heard that right. Grab a buddy, a neighbor, or anyone who can lend a hand. They’ll be your assistant, revving the engine or helping you keep an eye on the readings.


Method 1: Testing the Voltage Regulator of a Car

Let’s dive into the exciting world of car maintenance, specifically testing your car’s voltage regulator. It’s like being a mechanic and an electrician all rolled into one. I’ll walk you through this, step by step, just like I’ve done countless times in my garage.

Step 1: Set Your Multimeter

First things first, grab your multimeter. You’re going to want to twist that selection knob to the voltage settings – look for “∆V” or “V.”

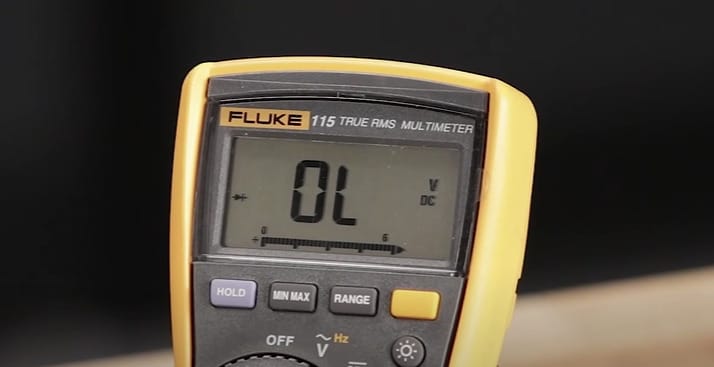

A multimeter on a sheet of paper with wiring diagram in it

Ensure it’s set to 20V; we don’t want to fry anything by having it on the wrong setting.

Plug the red probe into the ‘V’ port and the black one into ‘COM’. Give those probe leads a quick ping – a beep from your multimeter means you’re ready.

Step 2: Connect to the Car Battery

With your car engine off, let’s connect those multimeter probes. Black goes to the negative terminal and red to the positive.

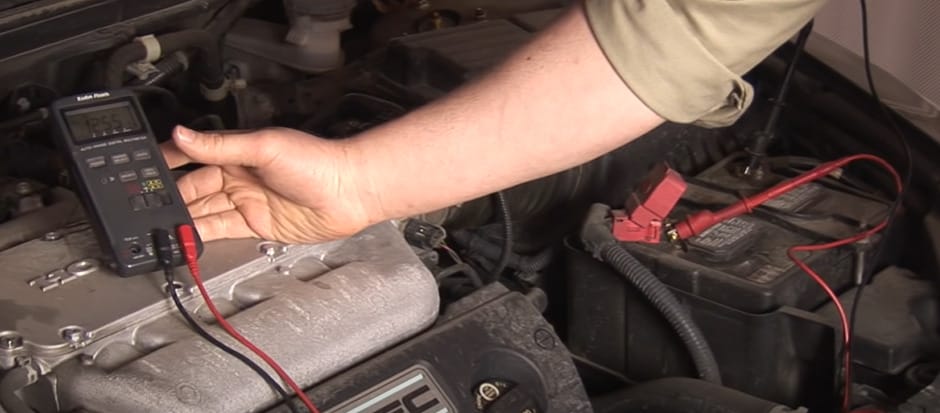

A person is using a multimeter to test the battery of a car
Video | ehowauto

It’s like setting up a campfire – everything needs to be in the right place. This step tells you if your battery’s in fighting shape.

A reading over 12V means you’re on the right track. Anything less is like finding out your flashlight’s dead – it’s time for a battery change.

Step 3: Fire Up the Engine

Next, we’re going to start the engine. Ensure your car’s in ‘park’ or ‘neutral,’ and don’t forget the emergency brake. Keep those probes connected.

A person is pointing at the multimeter that is being used to test the engine of a car
Video | ehowauto

Watch that multimeter – the voltage should jump up to around 13.8 volts. If it’s lower, it’s like finding out your favorite power tool isn’t charged – a sign your voltage regulator might be struggling.

Step 4: Rev That Engine

Here’s where a buddy comes in handy. Have them rev the engine, aiming for about 1,500 to 2,000 RPM. Keep an eye on the multimeter.

A person is using a multimeter to check the voltage of the battery in a car
Video | ehowauto

A healthy voltage regulator will show around 14.5 volts. Anything higher, and it’s like your car’s saying, “Whoa, too much power!”

Remember, a little DIY can go a long way in saving you time and money down the road. So grab that multimeter, call over a friend, and get to testing! Stay safe and enjoy the ride!


Method 2: Testing a 3-terminal Voltage Regulator

Let’s shift gears and talk about testing a 3-terminal voltage regulator, often found in our two-wheeled friends. It’s like being a part of a pit crew in a race, diving into the heart of your bike’s electrical system.

Setting Up for the Test

First, ensure your multimeter is still set from our last adventure. We’re keeping it in voltage mode because we’re about to dive into the world of AC and DC – and I’m not just talking about the band!

Testing the 3-Phase Voltage Regulator

Now, grab those multimeter probes. We’re going to measure the voltage of your 3-phase voltage regulator. Picture it like checking each cylinder in an engine – each one needs to be firing correctly.

Step 1: Check Each Phase

Your 3-phase regulator has three “legs” – think of them like the legs of a tripod. You need to test each one to ensure they all stand strong.

Measure the 1st leg with the 2nd, the 1st with the 3rd, and the 2nd with the 3rd. It’s like a dance, moving from one partner to the next.

Step 2: Note the Readings

Keep an eye on those multimeter readings. In a perfect world, they should all match up. If they’re doing a wild dance of their own and showing different readings, it’s a sign something’s off.

I once had a bike that was acting all sorts of crazy, and it turned out to be a wonky leg in the voltage regulator.

Step 3: Check Each Phase to Ground

This is your final check. Make sure there’s a reading for each phase to the ground. No reading? It’s like finding a dead end in a maze – you’ve got an open link somewhere.

So, take your time, follow these steps, and you’ll be the master of your motorcycle’s electrical universe in no time. Stay safe, have fun, and keep those engines revving!


Troubleshooting Based on Readings

Let’s dive into some troubleshooting based on those numbers. I’ve been down this road a few times and am here to share what those readings might tell you.

When the Voltage is Too Low

Picture this: you’ve done your tests, and the reading is lower than expected, say below 13 volts when the engine is running. This happened to me once with my old truck. It turned out the voltage regulator wasn’t doing its job properly. Low voltage can mean a few things:

  • Faulty Voltage Regulator: It might be time to replace it. It’s like when your sneakers are worn out – they don’t do the job anymore.
  • Bad Connection: Check for any loose wires or corroded connections. It’s amazing what tightening a bolt or cleaning a connection can do.
  • Alternator Issues: Sometimes, the problem lies with the alternator. It’s like when you think your phone’s charger is broken, but it’s the phone’s charging port.

When the Voltage is Too High

Let’s say the voltage spikes higher than expected, like over 14.5 volts. This can be just as tricky. I remember working on a friend’s car, and we saw the voltage going through the roof. High voltage can lead to overcharging and damage the battery or other electrical components. Here’s what to look out for:

  • Overactive Voltage Regulator: It might be pushing too much power. Think of it like a faucet that’s opened too much, flooding the sink.
  • Wiring Issues: Sometimes, short or incorrect wiring can cause overvoltage. It’s like crossing the wrong wires in a stereo system – things go haywire.
  • Battery Problems: Rarely can a bad battery cause high voltage readings. It’s like a bad reaction causing more problems.

General Tips for Troubleshooting

  • Visual Inspection: Always start with a visual check. Look for obvious signs of wear, tear, or damage.
  • Clean Connections: A good clean can solve more problems than you’d think. It’s like clearing the cobwebs – things start working better.
  • Consult the Manual: When in doubt, check the car’s manual. It’s like reading the recipe before baking a cake – it guides you in the right direction.
  • Seek Professional Help: If you’re stumped, don’t hesitate to call in a pro. Sometimes, you need that expert touch.

Remember, folks, troubleshooting is part detective work, experience, and intuition. With these tips and a bit of patience, you’ll be solving electrical mysteries like a pro. Stay safe, and happy DIY-ing!


Maintenance Tips for Voltage Regulators and Car Electrical Systems

Let’s break down these maintenance tasks into a simple schedule so you can keep your ride running smoothly and avoid those pesky electrical gremlins. Here’s a handy table to guide you through – think of it as your roadmap to electrical system health

Maintenance TaskDescriptionSchedule
Regular Voltage ChecksI’ve learned that keeping a regular check on your car’s voltage can prevent a lot of surprises. Just like you’d water your plants regularly, check your car’s voltage monthly.Monthly
Clean Battery TerminalsThere was this one time I found corrosion on my battery terminals. A quick cleaning was like giving my car a new lease on life.Every 3-6 Months
Inspect WiringI remember tracing a weird electrical issue back to a frayed wire. Regularly inspecting the wiring can save you from these hidden gremlins.Bi-annually
Check Alternator BeltA loose alternator belt once left me stranded. Now, I ensure it’s tight and in good shape – it’s like checking the strings on your guitar.Annually
Battery Health CheckJust like getting a yearly health checkup, I get my battery’s health checked annually. It’s the heart of your car’s electrical system, after all.Annually
Professional Electrical System InspectionI once had a pro thoroughly check my car’s electrical system. It was enlightening to see things I’d missed.Every 2 Years

Remember, folks, taking care of your car’s voltage regulator and electrical system is like tending to a garden. Regular care and attention can keep everything running smoothly and save you from unexpected breakdowns. Stay diligent, and happy motoring!


Frequently Asked Questions

  • Is It Safe to Test a Voltage Regulator on My Own?
    • Safety first, always! If you’re comfortable using a multimeter and understand basic car mechanics, go for it. Remember to follow all safety precautions, like turning off the engine and not touching any metal parts with your hands. If you’re unsure, there’s no harm in getting a professional to do it. It’s like knowing when to call a plumber instead of trying to fix that leak yourself.
  • What’s The Difference Between a Voltage Regulator and an Alternator?
    • Think of the alternator as the heart, pumping electricity, and the voltage regulator as the brain, controlling how much electricity gets pumped. The alternator generates the power, and the voltage regulator maintains the right amount of power.
  • How Long Does a Typical Voltage Regulator Last?
    • Like any car part, its lifespan can vary. A voltage regulator can last 5 to 10 years, depending on usage and overall vehicle maintenance.
  • Can I Replace a Voltage Regulator Myself?
    • You can try if you’re handy with car repairs and comfortable with electrical work. Just make sure you have the right tools and follow a reliable guide.
  • How Often Should I Replace My Voltage Regulator?
    • There’s no one-size-fits-all answer here. It’s like asking how often to replace running shoes – it depends on how much you use them. Generally, a voltage regulator can last quite a while, but it’s a good idea to test it regularly and watch for any signs of trouble.
