By the end of this article, you will know how to wire a car stereo system to a 12v battery.
In practice, car stereos drain 12v batteries quickly. However, if the battery is connected to the car, it will be cyclically recharged by the car. Otherwise, it is pointless to use a 12v battery. I have been an electrician for over a decade and I have installed car stereo systems for different vehicle models for my clients and have tailored this guide to help you do this at home, avoiding costly garage fees.
In Summary, you can wire a car stereo to a 12-volt battery when you:
- Strip the insulation layer of the red, yellow, and black wires on the stereo to about ½ inch.
- Twist the red and yellow cables and crimp the spliced end in an alligator clip.
- Crimp the black wire in another alligator clip too.
- Connect the wires to a 12-volt battery.
- Attach the car stereo to the speakers designed for vehicles.
We’ll go into more detail below.
Is It Possible to Connect the Car Stereo Directly to The Battery?
Yes, you can connect a car stereo directly to a battery. However, a car stereo uses a lot of electrical energy hence it will drain the battery quickly.
The situation is different if the battery is connected to the car; the battery is constantly recharged by the car hence the stereo system will not seem to be using a lot of energy.
So, if you directly attach your car stereo to a 12v battery outside the car, you will forever be recharging your battery.
How to Connect a Car Stereo System to A 12-Volt Cell
Get the following tools and materials to wire a car stereo to a 12-volt battery conveniently:
- Wire strippers
- A crimping tool
- Alligator clips
Caution: Do not attach the cables to the battery terminals directly, it is not safe.
Follow the steps below.
Step 1: Prepare the Cables
You will notice three wires coming from the stereo system; black, red, and yellow cables.

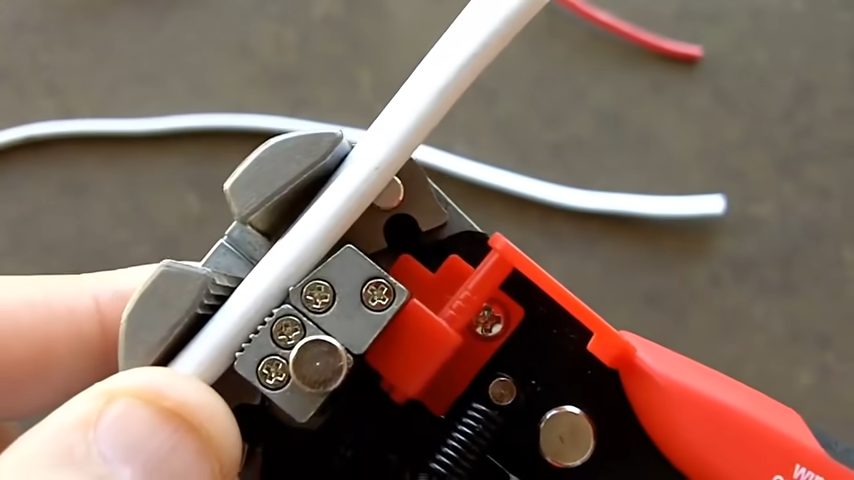

Using the wire strippers, remove about ½ inch of the insulation coating from the three wires projecting from the car stereo. (1)
Step 2: Splice the Red and Yellow Wires
Twist the naked terminals of the red and yellow cables to pair them up.
I do not recommend connecting the red-yellow to the positive terminal on the battery at this stage, but you can do it.
I strongly advise you to crimp the red and yellow wires to the alligator clip.
Step 3: Crimp the Black Cable

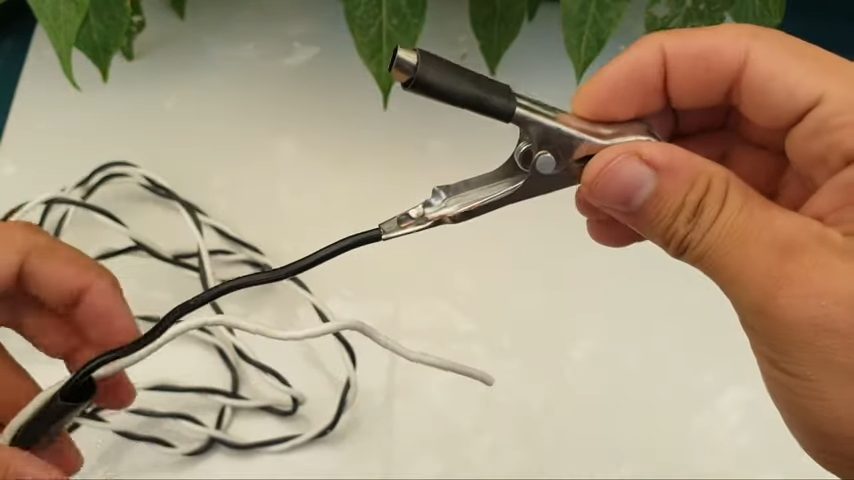

Compress the bare terminal of the black wire into an alligator clip.
Step 4: Connect the Cables to a 12v Battery
At this point, you can attach the twisted red-yellow cable to the positive terminal of the 12v battery. Usually, the positive terminal is either indicated as ‘positive’ or it is conventionally color-coded red.
Instinctively, the black wire goes to the opposite terminal – usually black.
Then, make sure the connection of the alligator clips on the respective terminals is firm.
Step 5: Connect the Stereo to The Speakers
Not all car stereos have speakers. I advise using or purchasing speakers that have been designed specifically for the vehicle’s stereo system and not rigging off-brand ones. They are compatible and effective when used with car stereos, and most importantly, they will use less energy. Your battery will last longer as a result.
But if you have to use other speaker brands, it’s best to power them separately.
Step 6: Switch on the Radio

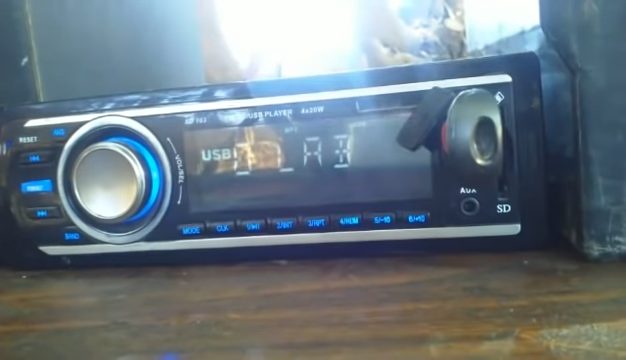

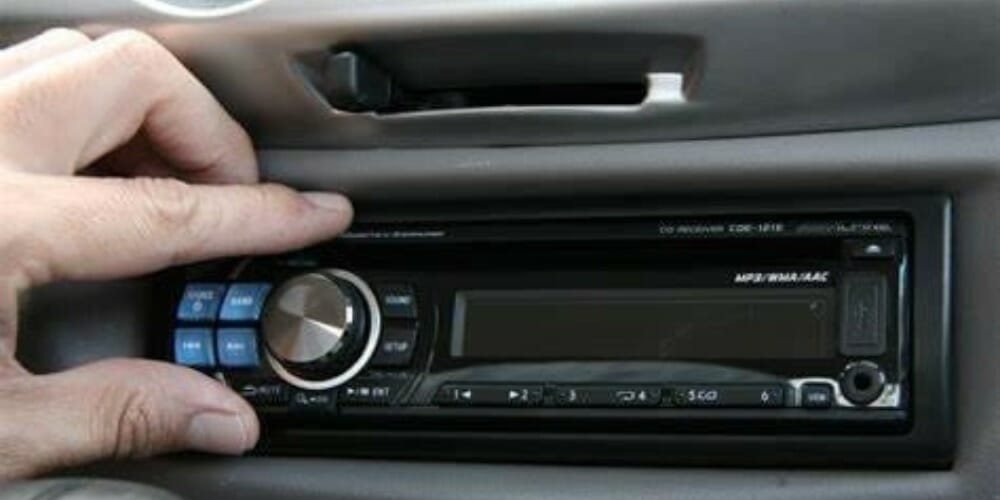

Once you have connected the speakers to the car stereo, the wiring process is over. All that is left is turning the radio on and tuning to your favorite channel.
Why is my stereo system not working?
If the radio is not functioning, then you are likely to have made some of these mistakes:
1. You did not charge the battery – To verify the strength of the battery, use a multimeter set to volts. Another option to check if the battery is charged is looking at the intensity of the car’s headlights – weak or flickering light indicates low energy capacity in the battery. Once the problem is identified, swap or charge the battery.
2. Your wire connections are faulty – Revisit the battery and speaker wiring. Match them against the instructions given in this guide (steps section) to pinpoint the error.
3. The radio is dead – If the battery has power, and the wires are accurately attached, then the radio is the problem. There are a lot of factors that can damage the radio. You may take it to a technician for repair. Replacing the radio is also recommended.
How can I improve the stereo system performance?
If you want your system to generate top-notch sound, upgrade it. You may use component speakers – install woofers, tweeters, and crossovers to filter the sound.
Tweeters capture the high frequencies of the sound while woofers receive the low-frequency sounds. If you add a crossover, the sound will be much better.
During a stereo system upgrade, ensure you use compatible components for maximum performance. Using incompatible elements will degrade the sound quality or even ruin your system. (2)
