How to Test an Alternator with a Multimeter

Have you ever wondered if your car’s alternator is on the fritz?

Quick Summary: Follow along as I show you the simple steps to test your car’s alternator using a multimeter.

🔋 Step 1: Test the Battery Voltage When the Engine Is Turned Off
🔌 Step 2: Connect the Probes
🚗 Step 3: Test Battery Voltage When the Engine Is Turned On
🔍 Step 4: Evaluate Change In Voltage Reading

Don’t worry; we’ll go through how to perform alternator testing using a multimeter afterward. It’s a relatively straightforward operation that doesn’t necessitate any electrical knowledge.

Gear Up: Tools You Need to Test an Alternator

Alright, DIYers, let’s get our hands dirty! Testing your car’s alternator doesn’t call for a professional garage setup. You need a few basics, and you’re good to go. Here’s my personal toolkit for tackling alternator tests:

  • A Multimeter: This is your golden ticket in car diagnostics. I’ve had my trusty multimeter for years, and it’s been a champ in diagnosing everything from pesky electrical gremlins to full-blown alternator issues. It’s precise and reliable, and I’d be lost without it.
  • A Solid Car Battery: Make sure your car’s battery is up to snuff – it’s the cornerstone of your test. I remember thinking my alternator was the culprit, but it turned out my battery was too weak. A good, strong battery makes all the difference.
  • Working Car Accessories: Lights, radio, and electric goodies in your car play a part in this process. They’re like the supporting cast in your alternator-testing drama. I once had a radio that would go haywire whenever my alternator faltered – talk about a helpful hint!

With these simple tools, you’re all set to dive headfirst into alternator testing. It’s not about having the fanciest gear; it’s about knowing your car and using the right tools effectively.


How to Test Alternator with Multimeter

Let’s dive into how to test your alternator with a multimeter. Trust me, I’ve been down this road a few times with my own rides, and it’s easier than you think.

Step 1: Test the Battery Voltage When the Engine Is Turned Off

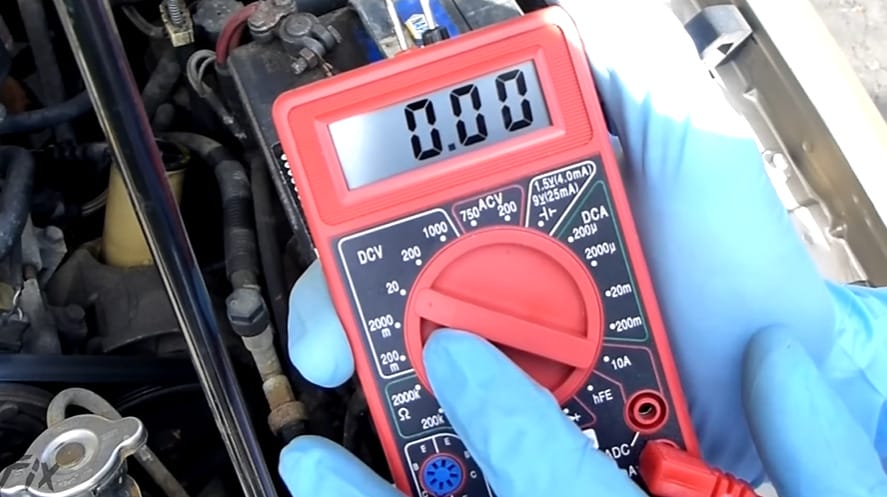

A person in a blue gloves using a multimeter to test the alternator of a car
Video | ChrisFix

  • First, let’s check your battery voltage with the engine off. Grab your trusty multimeter – mine’s been a lifesaver more times than I can count. Set it to the 20 DC volts range.

Step 2: Connect the Probes

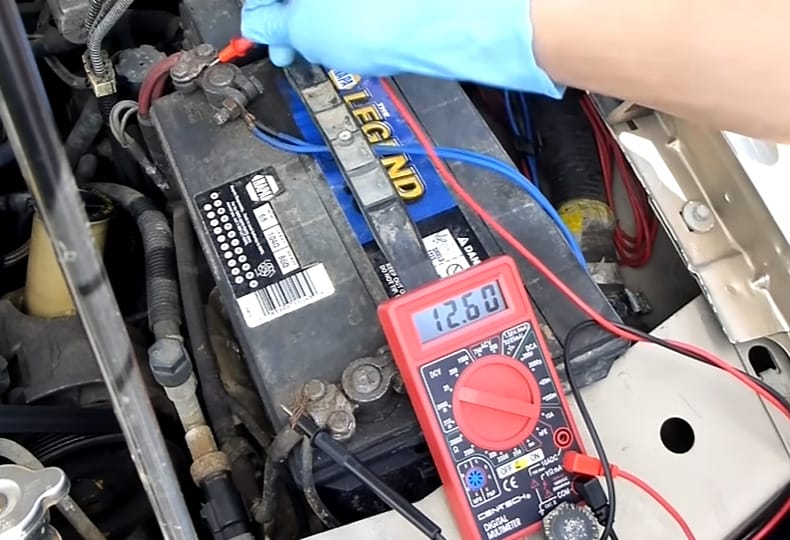

A person connecting the lead probe of a multimeter to car batter
Video | ChrisFix

  • Connect the red lead to the positive terminal and the black lead to the negative. You’re looking for a reading between 12.4 and 12.8 volts.
  • I remember getting a 12.3V reading; that was a sign of things to come!

Step 3: Test Battery Voltage When the Engine Is Turned On

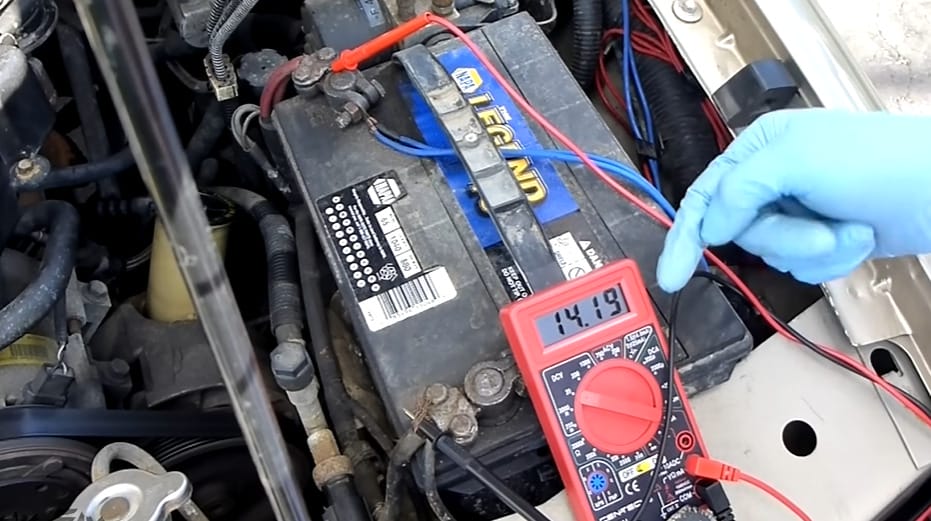

A person is using a multimeter to test a car battery; the multimeter at 14.19 reading
Video | ChrisFix

  • With the engine running, let’s see what the multimeter tells us—the same drill as before – red to positive, black to negative.
  • What you want to see now is a voltage jump, ideally between 13.5 and 14.5 volts.

Step 4: Evaluate Change In Voltage Reading

A person is using a multimeter to test a car battery; the multimeter at 14.25 reading
Video | ChrisFix

  • Keep a close eye on that multimeter. A good alternator should give you a nice voltage boost. If it stays flat or drops, you might be in the same boat I was in last summer – shopping for a new alternator.

Testing your alternator doesn’t have to be daunting. With a multimeter and some know-how, you’ll have your answer quickly. And hey, it’s a great way to get to know your car better!


Signs that your Alternator is Bad

You know, diagnosing alternator issues can sometimes feel like playing detective. Here are some clues I’ve picked up along the way:

  • Lights That Can’t Make Up Their Mind: Reminds me of when I was driving through a dark, winding road, and my headlights started flickering like a haunted house. That was my first hint – my alternator was saying goodbye.
  • The Battery Just Isn’t What It Used to Be: I had this old sedan and loved it to bits. But one day, the battery wouldn’t hold a charge. After swapping batteries twice, I finally realized – it was the alternator.
  • Growls and Grumbles Under the Hood: My truck started growling like a hungry bear this time. It turned out the alternator belt had seen better days. Fixed the belt, and peace returned under the hood.
  • Slow-Mo Electronic Gadgets: I remember helping a friend whose car windows would take forever to close. After some tinkering, we discovered the alternator wasn’t meeting the demand.
  • The Engine’s Playing Hard to Get: Ah, this one’s classic. My neighbor’s car wouldn’t start without a fight. A quick check: the alternator was the shy guy here.
  • That Burning Smell: On a road trip, my car started smelling like it was burning. At first, I thought it was something outside, but no – it was the alternator overheating. Not the fragrance you want on a long drive!

Advanced Troubleshooting Tips for Alternator Issues

As someone who’s spent quite a bit of time under the hood, I’ve come across some advanced tricks of the trade for troubleshooting alternator issues.

These techniques might not be common knowledge, but they can effectively solve a tricky problem. Let me share a few with you in a handy table format:

ChallengeAdvanced TipPersonal Experience
Inconsistent ChargingVoltage Drop TestI once dealt with a car that was charging intermittently. I performed a voltage drop test on the alternator’s output wire. This involves measuring the voltage across the wire while the engine is running. If there’s a significant drop, it indicates a bad connection or a damaged wire.
Noise DiagnosisStethoscope UseAn automotive stethoscope can be a lifesaver. I remember using it to pinpoint a whining noise that turned out to be from the alternator bearings. It helps isolate the noise source without the interference of other engine sounds.
Fluctuating Electrical OutputOscilloscope AnalysisThis one’s a bit high-tech. I once used an oscilloscope to monitor the alternator’s output waveforms. It can reveal issues like diode failures that aren’t always apparent with a standard multimeter.
Determining Bearing FailureNon-Contact ThermometerI used a non-contact thermometer to detect overheating in an alternator. Excessive heat in the alternator region often points to bearing failure or internal friction.

Remember, these techniques require more expertise and sometimes specialized tools, but they can provide insights that basic checks might miss. Each one has helped me crack a tough case more than once!


Maintenance Advice Post-Testing

And after you’ve done your detective work with the multimeter, here’s how to keep that alternator humming:

  • Keep It Clean: I gently wipe my alternator after a muddy off-road adventure. Trust me, a little cleaning goes a long way.
  • Check the Belts: I learned this the hard way – an alternator belt that is too tight can lead to a breakdown at the worst possible time. Keep it snug but not strangled.
  • Listen for Weird Noises: I once ignored a whining noise from my alternator, thinking it was nothing. A week later, I was stranded on the highway. Lesson learned.
  • Monitor Battery Health: I closely monitor my battery’s health, especially after installing a high-powered stereo system. It’s all about balance.
  • Watch for Warning Lights: Don’t ignore those dashboard lights. They once saved me from a costly alternator replacement.
  • Regular Professional Checkups: I might love DIY, but I still get a professional to peek at my alternator during services. They sometimes catch things I miss.
  • Know When to Call in the Pros: I remember trying to fix an alternator issue myself, only to make it worse. Sometimes, it’s best to call in the experts.

These personal stories and tips are from my own car adventures. I hope they help you keep your ride in shape like they helped me!


Frequently Asked Questions

  • Can A Bad Alternator Damage Other Car Parts?
    • It can. A failing alternator can lead to low voltage in the system, which might affect the battery and strain other electrical components. Keep an eye out for any signs of a struggling alternator.
  • How Long Does An Alternator Typically Last?
    • This is like asking how long a piece of string is, but generally, an alternator can last anywhere from 80,000 to 150,000 miles. Of course, this depends on your driving habits and the quality of the alternator.
  • Is It Expensive To Replace An Alternator?
    • The cost can vary. It depends on the make and model of your car and whether you’re going for a new or refurbished alternator. We’re talking a range from a couple hundred bucks to much more. Don’t forget to factor in labor costs if you’re not doing it yourself.
  • Can I Drive My Car With A Failing Alternator?
    • Driving with a failing alternator is like walking on thin ice. You might manage for a short distance but risk a breakdown. It’s better to get it checked out as soon as possible.
  • How Often Should I Test My Alternator?
    • It’s wise to test your alternator as part of your regular car maintenance, say, once a year. If you notice any issues with your car’s electrical system or performance, check it out sooner.
  • Can A Faulty Alternator Affect Fuel Efficiency?
    • You bet it can. A struggling alternator can put extra load on the engine, which might lead to poorer fuel efficiency. It’s like trying to run with a heavy backpack – it takes more energy.
  • If My Car Starts, Does That Mean My Alternator Is Okay?
    • Not necessarily. Your car might start fine, but if the alternator fails, it won’t be able to keep the battery charged. It’s like starting a race strong but not having the stamina to finish.
