How To Test a Capacitor with a Multimeter (3 Simple Methods)

Capacitors are the backbone, silently fueling devices from your buzzing air conditioners to the smartphones in your pockets. But here’s the catch – how do you know if these tiny powerhouses are working their magic just right?

Quick Summary: There are three simple and effective methods to test a capacitor using a multimeter. Here’s the low down:

🔍 Method 1: Use the Capacitance Mode on the Multimeter
🔬 Method 2: Use the Resistance (Ω) Mode on the Multimeter
🔔 Method 3: Use the Continuity Mode of a Multimeter to Check the Capacitor

In this article, we dive into capacitors and multimeters, unraveling the steps to test these components accurately. Let’s start and demystify the process of testing capacitors with a multimeter.

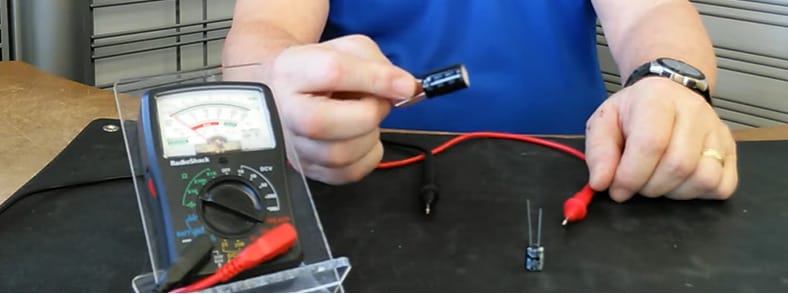

Ways to Test a Capacitor Using a Multimeter

At first, you have to ensure you know what you’re doing. Carefully read out the warnings before applying these methods of testing a capacitor.

You also have to determine the main failure modes, which means what is the suspected fault in the capacitor, so you can know what testing method to use:

  • Decrease in capacitance
  • Dielectric breakdown (short-circuit fault)
  • Loss of contact between plate and lead
  • Leakage current
  • Increased ESR (equivalent serial resistance)

Method 1: Use the Capacitance Mode on the Multimeter

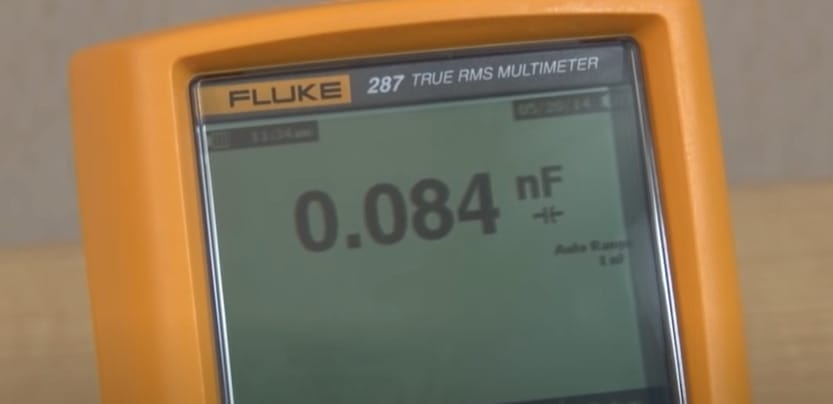

A fluke multimeter is shown with 0.084 nF reading on its screen
Video | GalcoTV

In my experience, this is the most straightforward method. Most digital multimeters have this feature, and I’ve used it countless times to check capacitors in various devices. Here’s how I go about it:

Follow these step-by-step instructions:

  • Step 1: I always start by turning the multimeter’s knob to the capacitance mode. Look for the capacitor symbol – it’s easy to spot.

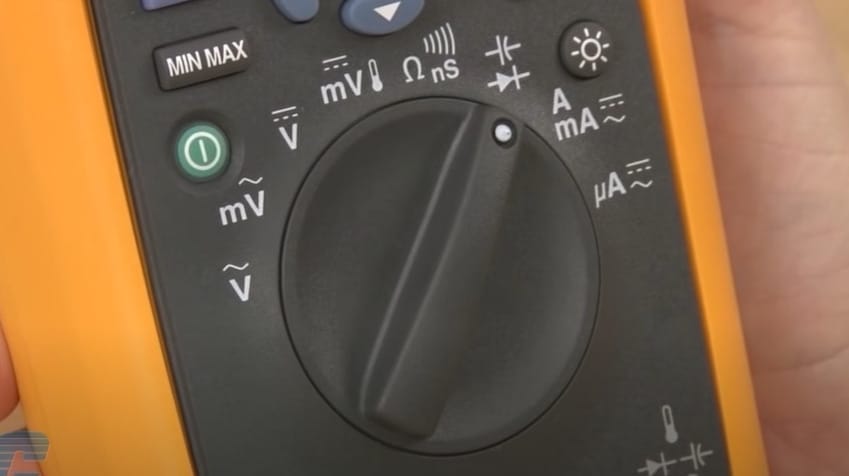

A fluke multimeter setting menus
Video | GalcoTV

  • Step 2: I connect the capacitor terminals to the multimeter leads. Red to positive, black to negative. It’s crucial to get this right for an accurate reading.

A person is using a pair of pliers to connect two wires in order to test a capacitor with a multimeter.
Video | GalcoTV

  • Step 3: Then, I compare the value on the display with the expected value of the capacitor. This step is vital to determine if the capacitor functions as it should.

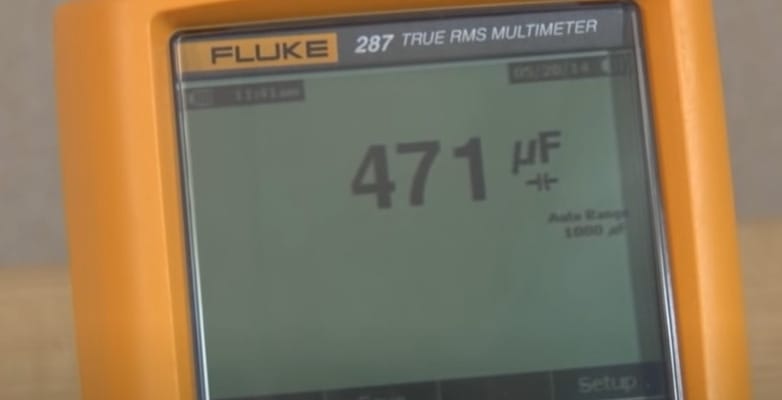

A fluke multimeter showing 471 uF reading on the screen
Video | GalcoTV

Remember, these steps are easy to follow but must be executed correctly. Incorrect measurements can lead to improper testing.

Method 2: Use the Resistance (Ω) Mode on the Multimeter

I was amazed at its effectiveness when I first started using this method. It’s particularly useful when I don’t have a capacitance mode on my multimeter.

  • Step 1: First, I ensure the capacitor is fully discharged by shorting them using a screwdriver.

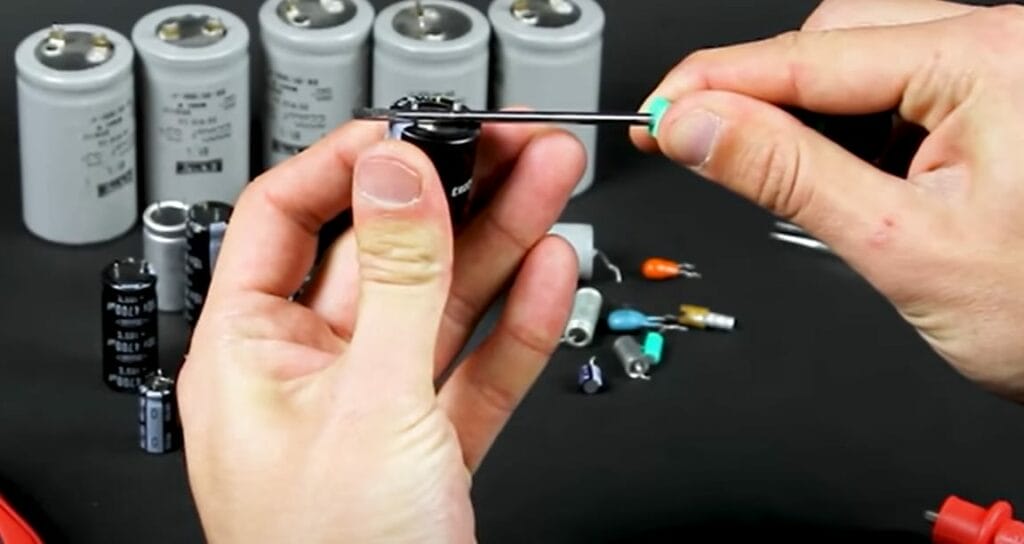

A person is shorting the capacitor using a screwdriver
Video | ToolBoom

  • Step 2: I set the multimeter to the highest resistance mode.

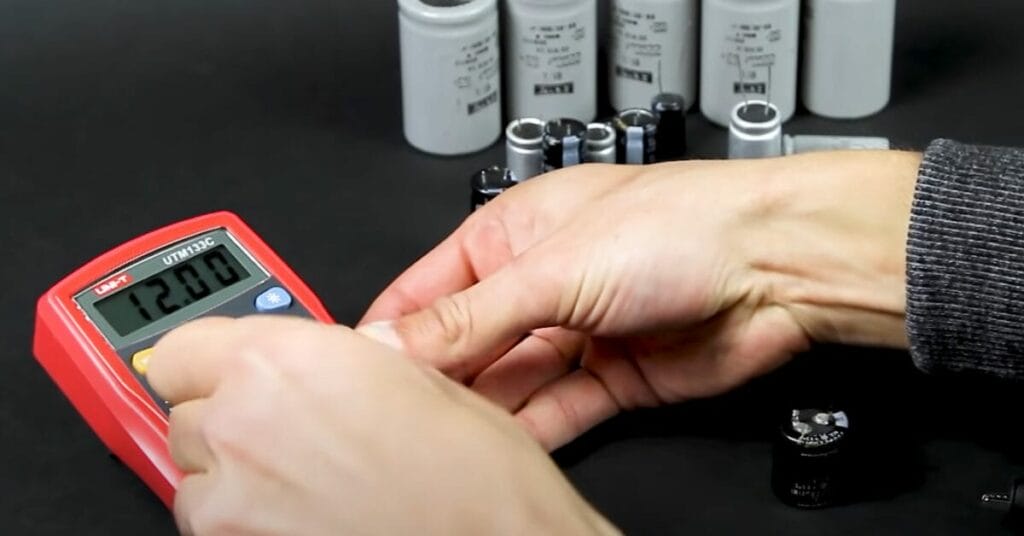

A person is setting the digital voltmeter to test batteries and capacitors
Video | ToolBoom

  • Step 3: I carefully connect the meter leads, ensuring they match the capacitor’s terminals.

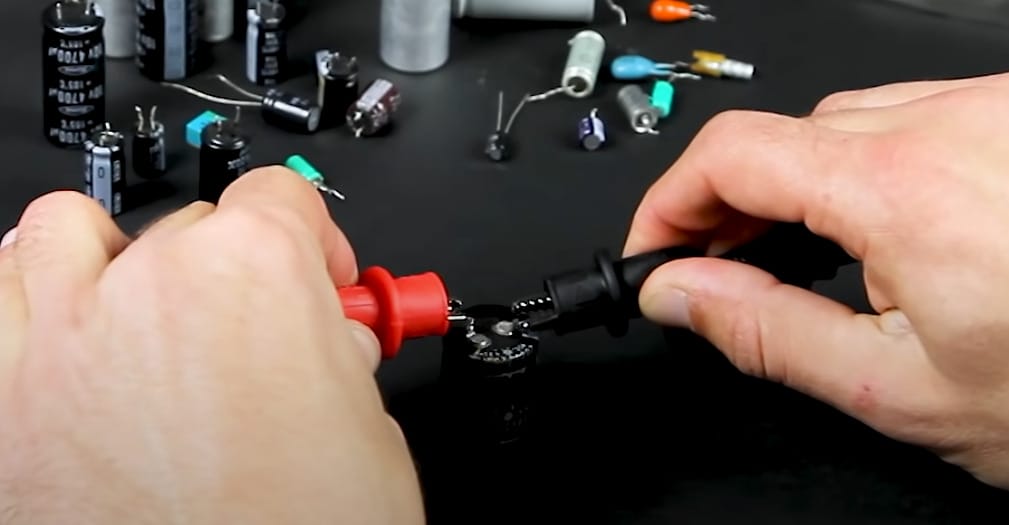

A person is connecting the multimeter leads to the capacitor's terminal for testing
Video | ToolBoom

As you complete these steps, the meter embarks from zero to infinity, finally settling on a digital resistance value and reverting to the Open Line.

This reading lets you compare the resistance value specified on the capacitor to ascertain if it’s good, defective, open, dead, or short.

Method 3: Use the Continuity Mode of a Multimeter to Check the Capacitor

I’ve found this mode to be a quick way to check the general health of a capacitor.

  • Step 1: Safety first – I always disconnect the power supply and remove the capacitor.

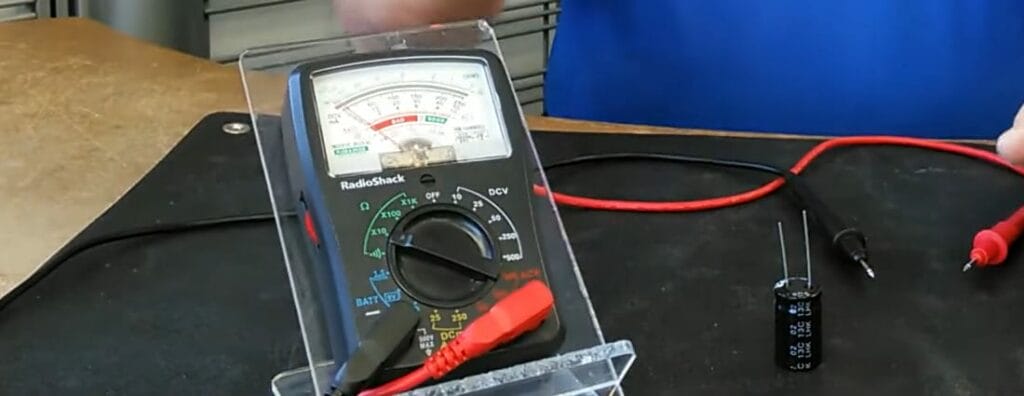

  • Step 2: I then set my multimeter to continuity mode.

  • Step 3: Finally, I connect the probes to the capacitor terminals. A beep or a light indicates a good capacitor.

If the capacitor is in good condition, you’ll hear a sound like a beep or a blinking LED light on various multimeter models; both are good signs.


Comparing Capacitor Testing Methods: Multimeter vs. Other Techniques

Testing capacitors is like finding the right tool for a particular job – you’ve got to know your options and when to use them.

Over the years, I’ve encountered different ways to test capacitors, each with its strengths. Let’s break it down:

Testing MethodAdvantagesDisadvantages
Multimeter Testing• Versatile: Tests capacitance, resistance, and continuity.
• Precise & Quick: Accurate, fast readings.
• Widely Accessible: Common in electronic toolkits.
• Limited by Features: Depends on the multimeter’s capabilities.
• Indirect ESR Testing: Not as effective for ESR as specific ESR meters.
ESR Meter Testing• Specific for ESR: Ideal for testing ESR in electrolytic capacitors.
• Crucial for Power Circuits: Key for identifying failing capacitors in power supplies.
• Single Purpose: Primarily used for ESR testing.
• Less Versatile: Not suitable for other types of capacitor testing.
Traditional Analog Multimeter• Effective for Leakage: Good for high-voltage capacitor leakage testing.
• Visual Indication: Needle movement indicates leakage.
• Time-Consuming: Slower than digital methods.
• Less Precise: Analog readings are less exact than digital.

Common Issues and Troubleshooting Tips

In any electrical or electronics project, proficiency is often challenged, and a capacitor is no different. Going wrong, it can be a pain to test. We’ve all been there. But let’s focus on some resolution!

Common Issues

The testing isn’t like grabbing candy from a baby. It comes with its share of common issues:

  • Your multimeter readings aren’t consistent: Uh-oh. This often happens when the capacitor isn’t fully discharged before testing. Use a metal tool like a screwdriver to short the capacitor before testing it.
  • Capacitor appears damaged: If you’ve noticed bulges or leaks during your visual examination, your capacitor is likely in the hall of shame. It’s time for a well-deserved replacement.
  • The capacitance value doesn’t match the printed rating: If the difference is significant, we might have a problem. It’s a clear sign of a faulty capacitor.

Troubleshooting Specific Modes

Here’s a quick guide on the common hiccups you might encounter in each testing mode.

  • Capacitance Mode: No reading? Check connections and consider a gentle pre-charge. A dead silence could indicate a completely discharged or defunct capacitor.
  • Resistance Mode: Zero movement? Verify the resistance range setting. Persistent inactivity could mean an open circuit, signaling it’s time for a capacitor change.
  • Continuity Mode: No beep or light? Ensure proper discharge and tight probe connections. The silence here usually means an open circuit pointing towards capacitor replacement.

Remember, guys – if your capacitor isn’t functioning properly, it can wreak serious havoc on your electronic devices. So, always taking preemptive measures and doing routine checkups saves a lot of headaches later on.


Safety Measures and Precautions in Capacitor Testing

Safety isn’t just a suggestion when working with electronics, especially capacitors, but it’s necessary. Here’s a rundown of essential safety measures and precautions I always follow and recommend:

  • Proper Discharging of Capacitors: Before testing any capacitor, it’s vital to discharge it fully. Capacitors store energy, and handling them without discharging can lead to electric shocks. Use a resistor or a screwdriver with an insulated handle, but be careful – it can spark!
  • Using Right Tools: Ensure your tools, like multimeters, are in good working condition. Using faulty equipment can give incorrect readings and pose a safety risk.
  • Understanding Capacitor Ratings: Be aware of the voltage and capacitance ratings of the capacitors you’re testing. Using a multimeter that isn’t rated for the capacitor’s voltage can be dangerous.
  • Personal Protective Equipment (PPE): Always wear safety goggles and gloves. This might seem over-cautious for small projects, but eye protection is crucial, especially when dealing with the possibility of sparks or short circuits.
  • Working in a Well-lit and Organized Space: Good lighting helps you see what you’re doing, reducing the risk of mistakes. Keeping your workspace organized ensures quick access to the right tools and equipment.
  • Avoid Working on Live Circuits: Ensure the power is off before you start working. Testing capacitors in live circuits increases the risk of electric shock.
  • Educate Yourself: If you’re new to electronics, take the time to learn. You understand how capacitors and multimeters work, which will make your work safer and more effective.
  • Regular Breaks: Fatigue can lead to mistakes, so take regular breaks, especially during lengthy projects.

Remember, taking shortcuts can have serious consequences in the electronics world. Following these safety guidelines helps you navigate safely and confidently, whether hobbyist or professional.


Frequently Asked Questions

  • Can I Test a Capacitor Without Removing It From the Circuit?
    • Testing a capacitor without removing it from the circuit can be tricky and may not give you accurate results. It’s usually recommended to remove it to avoid readings influenced by other circuit components.
  • How Do I Know If My Capacitor Is Polarized or Non-Polarized?
    • Identifying a capacitor type is key. Polarized capacitors, like electrolytic ones, are usually marked with a “+” sign for the positive terminal. Non-polarized ones, like ceramic capacitors, don’t have this marking.
  • What Does a Fluctuating Reading Mean When Testing a Capacitor?
    • If your multimeter’s reading fluctuates wildly, it could indicate a faulty or unstable capacitor. Consistency is key in these readings for a healthy capacitor.
  • What’s the Lifespan of a Typical Capacitor?
    • Capacitors vary in lifespan depending on their type and usage. Generally, electrolytic capacitors can last between 5 to 15 years, but this can be shorter in high-usage or high-temperature conditions.
  • Can a Multimeter Test All Types of Capacitors?
    • Most common types, yes. However, some high-capacity or specialized capacitors might require specific testing methods or equipment.
  • How Often Should I Test the Capacitors in My Devices?
    • Checking capacitors annually is a good practice for critical or heavily used devices. Otherwise, testing when you notice performance issues is usually sufficient.
