How to Anchor a Gazebo without Drilling

If you have a garden or a large terrace, you may consider putting up a Gazebo to enjoy the shade. However, installing it by drilling into the ground can cause cracks or damage, not to mention the danger of perforating the asphalt fabric or the problems that it could cause you with the owner of the house if it is rented.

For this reason, in this article, we show you some alternatives so that you can install your Gazebo without damaging the ground.

We will cover several options depending on your preferences and the environment in which you anchor the gazebo.

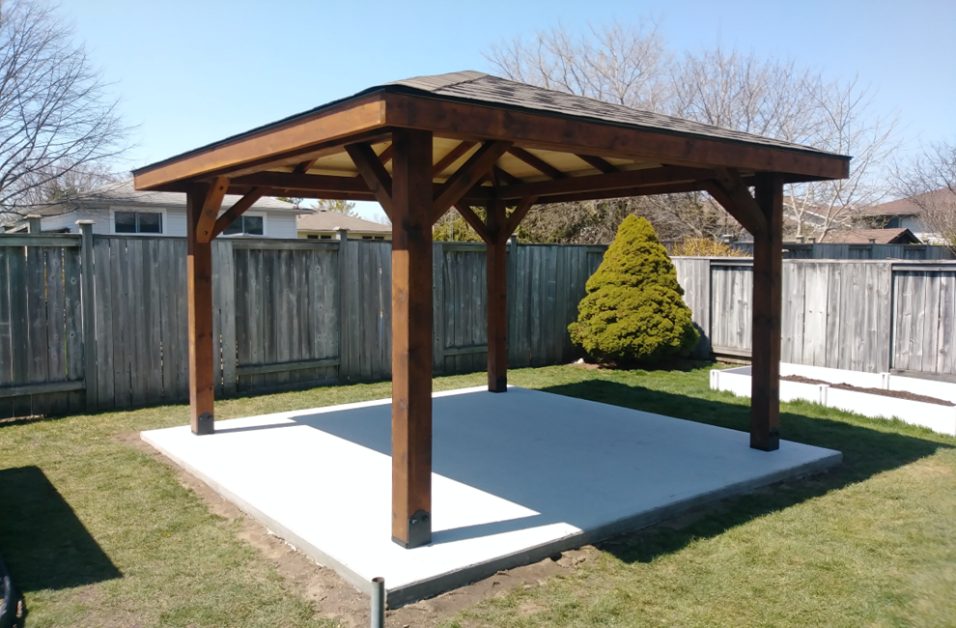

Installing a Gazebo Using Concrete Slabs

gazebo using concrete slabs

One of the options that we can use to support the gazebo without damaging the floor with holes is to have a concrete slab below. In this case, each post would be bolted to a concrete slab. This slab would have to be heavy, weighing at least 50 kilos, depending on the material used to build your gazebo.

The truth is that using a concrete slab is a valid option to hold a gazebo without drilling into the ground, but it is also true that the result is not very aesthetically attractive. If you have other alternatives at hand, they may be better.

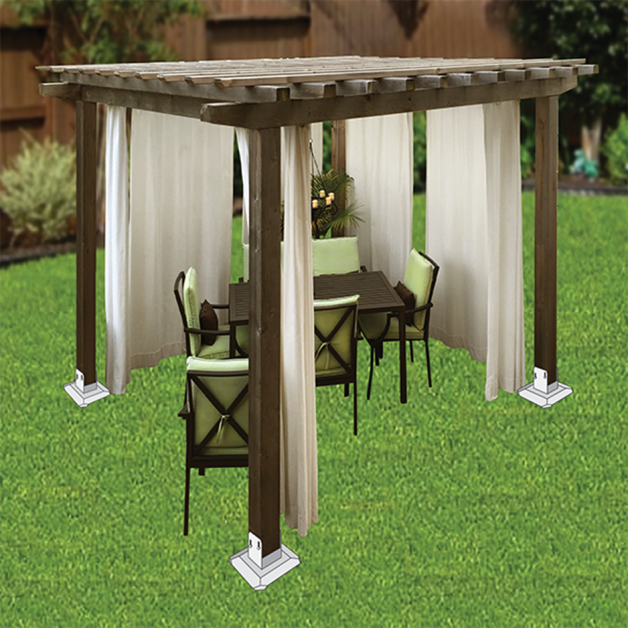

Installing Gazebo Using Iron Plates

gazebo using iron plates

Very similar to the previous option is to fasten the gazebo by screwing each post to an iron plate. It would have to have dimensions of at least 20 kilos. To improve the appearance of this solution a little, you can put some planters on top of the iron plate. They should be solid pots, from about 150 to 200 kilos as a minimum.

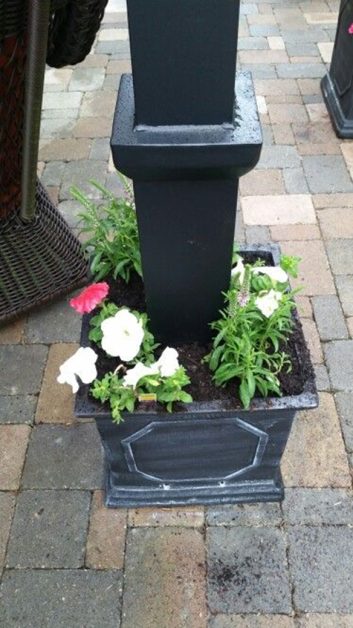

Installing a Gazebo with Pots

gazebo with pots

We resort again to the pots as in the case we have just seen, but this time, the gazebo posts are not supported by iron or concrete plates but are directly inserted into the ground. To have sufficient support, these planters must have a minimum dimension of 50x50x50.

We can even do a simple DIY job that allows us to make the installation safe thanks to the use of PVC pipes that will serve to insert the gazebo into them, thus avoiding having to put the gazebo directly on the potting soil. This is what we will need:

  • 4 cylindrical planters 30-40 cm in diameter and about 40 cm high
  • PVC pipe with a diameter slightly larger than the pillars of the gazebo
  • Fast-setting glue
  • Topsoil
  • Seedlings to make it look better

To make this simple “design” from which we are going to fix the gazebo later, all we have to do is:

Step 1: Cut the PVC pipe into pieces as long as the height of the planters.

Step 2: Add the quick-setting glue, place the tube in the bottom of the pots, and let it dry.

Step 3: Fill the pots with soil and plant small flowering plants like gazania, petunias, or succulents like aptenia.

Step 4: Lastly, install the gazebo.

What disadvantages or problems does this option have?

Aesthetically, it may be the most attractive option or the least ugly. Still, in practice, it seems that it will be better than nailing the gazebo directly to the pot floor or the ground as if it were staked.

We might encounter some drawbacks. One of these drawbacks is that if you insert the posts directly into the ground, with the watering of the pots and over time, the structure of the gazebo will end up rusting with the water.

On the other hand, we have the lack of stability that the gazebo would have, which could give way with its weight and make the ground break until everything ends up on the ground, and the pots break. As we have mentioned, it is better to choose PVC tubes, although you must ensure they have an adequate diameter so we can insert the gazebo in them.

This way, by inserting the posts into PVC tubes, you can protect them from moisture and prevent oxidation. But then we face another problem, and it is possible that by doing this, the PVC tube is very loose, and the fastening is not as strong.

However, if you follow the instructions above and make sure you attach the tube to the pot well, there shouldn’t be any problem. You just have to be sure that the tube has dried and is well secured. It will not hurt to do a simple test by taking the tube and lifting it to check that it does not come loose from the pot.


Inserting the Anchors Directly Into the Ground

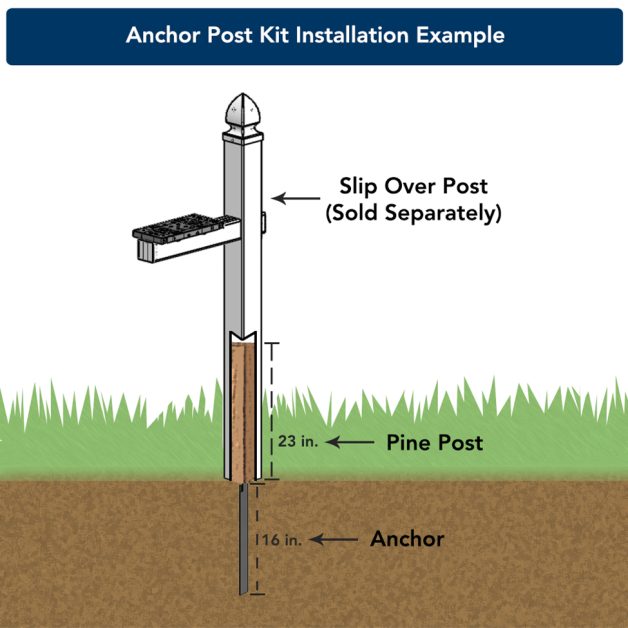

anchor post kit installation guide

We do think choosing PVC pipes is the best solution. However, if you still want to take the gazebo and nail it directly to the potting soil, you should know that there are currently excellent products that provide for all kinds of problems that outdoor installations often face.

If we choose to insert the posts into the ground, one way to prevent them from rusting with water if we water the plants is to paint the posts with special anti-rust paint. These products ensure that the iron of the posts and structures does not suffer from oxidation.

You must always be attentive to a problem more significant than water: the wind. When it is very windy, it can drag even large structures, which is a real danger.

If you live in an area with strong winds, the options we have given you may not be enough, and you have to take special precautions to make sure that the support you give to your gazebo is strong enough so that it is not dragged and that an accident does not occur because of this.

A solution is to fix the pots to the ground, but then you are already drilling. For this, it may be better to fix the gazebo to the ground, precisely what we do not want to do and for what we are looking for solutions through this article.


Anchoring a Gazebo to The Wall

gazebo area

If you live in a very windy area but still resist having to drill or drill the ground to place the gazebo, there is no doubt that the best option may be to fix your gazebo directly to the wall.

A gazebo leaning on the wall or attached to it will help you ensure that it is always securely fixed without being affected by the wind. Still, not only that, but it is also an easier way to add more space to your terrace, taking advantage of the existing structure of his house.

Another plus point with this method is that since you’re building on one side of the house, it reduces the materials needed to build it and helps speed up the building process. You may think that doing this is somewhat complicated, but the truth is that it is not.

First of all, you have to determine the location where the gazebo is going to be placed. With this, you will be able to locate the exact places where the freestanding posts will go so that you can mark on the wall the places exactly opposite them where the hangers for the attached structures will also go.

Make sure the places are correct and drill the holes at the marked positions with the power drill to insert the anchors into those holes.

With the help of these holes, you will screw the beam supports that will hold the gazebo beams to the wall, and after doing this, you will proceed with the gazebo building process as usual (placing the posts that will support the gazebo beams and the ceiling).

Next, attach the gazebo beams to the wall, ensuring they fit snugly, and then screw them in once you’ve made sure they’re straight and level.

To make them more secure, or if you don’t want to use joist brackets, you can attach some of the same types to the wall to serve as support for the joists or make notches in said joists, so you have to screw them to the wall and screw it in the gazebo.
