How Many Wires in 1/2 EMT?
Did you know that too many wires carrying too much current flow will produce enough heat to melt vinyl coating, creating a fire hazard?
According to ESFI, an estimated 51,000 fires, 1,400 injuries, and $1.3 billion in property damage are caused by home electrical fires in the US each year. These statistics prove that you should install the proper wiring to safeguard your property. That’s why ill be teaching you the correct amounts of wires for a 1 2 EMT in my article.
In general, you may only fit these few wire sizes in a ½-inch EMT:
- Twelve (14 AWG) electrical wires.
- Nine (12 AWG) electrical wires.
- Five (10 AWG) electrical cables.
- Three (8 AWG) electrical wires.
I recommend you continue reading to know the number of wires you can fit into other sizes of wire conduits:
How Many Wires Are In 1/2 Conduit?
The number of solid wire sizes that can fit into an ½-inch conduit will always depend on what type of electrical conduit you are using.
There is a risk that too many cables inside the conduit carrying too much current flow will produce enough heat to melt the vinyl coating on the solid wires, creating a significant fire hazard. Correctly identifying the conduit material is the first step in determining the fill capacity.
When you cannot utilize an NM cable to protect exposed electrical wires, that is the time when you use an electrical conduit as a substitute.
An electrical conduit has a maximum number of electrical cables that you may run through it, regardless of whether it is made of rigid metal (EMT), rigid plastic (PVC conduit), or flexible metal (FMC). Conduit fill capacity is a rating set by the National Electrical Code and complied with by most local codes, which act as the supreme legislation in any given location.
For you to know how many wires in 1 2 EMT, there is a table below from National Electrical Code to keep you guided:
Size | Kind of Conduit | 14 AWG | 12 AWG | 10 AWG | 8 AWG |
EMT | 12 | 9 | 5 | 3 | |
1/2-inch | PVC-Sch 40 | 11 | 8 | 5 | 3 |
PVC-Sch 80 | 9 | 6 | 4 | 2 | |
FMC | 13 | 9 | 6 | 3 | |
EMT | 22 | 16 | 10 | 6 | |
3/4-inch | PVC-Sch 40 | 21 | 15 | 9 | 5 |
PVC-Sch 80 | 17 | 12 | 7 | 4 | |
FMC | 22 | 16 | 10 | 6 | |
EMT | 35 | 26 | 16 | 9 | |
1-inch | PVC-Sch 40 | 34 | 25 | 15 | 9 |
PVC-Sch 80 | 28 | 20 | 13 | 7 | |
FMC | 33 | 24 | 15 | 9 |
Which is Better, an EMT or a PVC Conduit?
I can usher you in making an informed decision if you’re debating between electrical metallic tubing and PVC versus EMT conduit. PVC and steel are substantially more expensive than aluminum EMT, which is also much stronger and more durable.

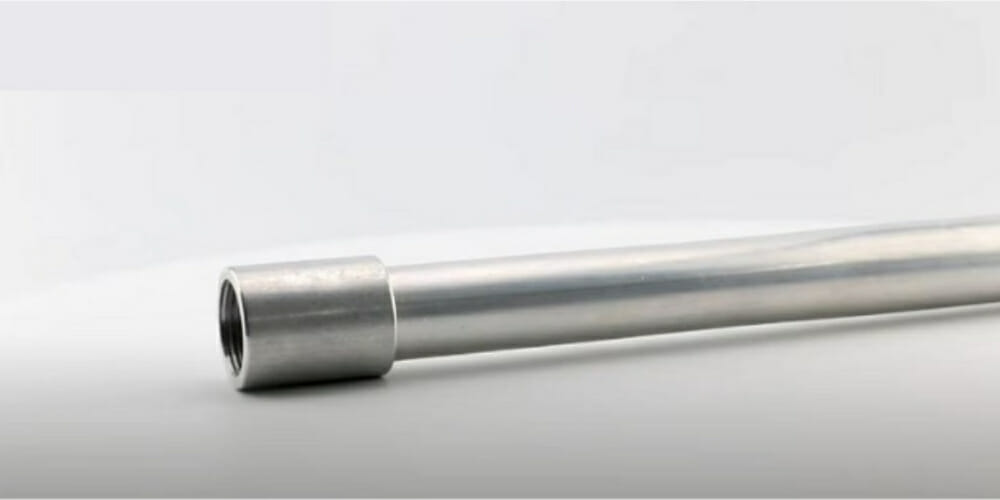

Here are five advantages of using Aluminum EMT:
- Although aluminum weighs 30% less than steel, it is just as robust. Steel can become frail when exposed to freezing cold temperatures, but aluminum becomes stronger.
- Aluminum may be easily cut, bent, or punched without special tools.
- Aluminum shields electromagnetic radiation, preventing interference with your delicate electrical equipment.
- Along with the heat, aluminum is excellent at carrying electricity. It remains safe to the touch despite how hot or cold it may be outdoors.
- Another quality of aluminum is its corrosion resistance. Aluminum naturally protects itself by forming a thin oxide coating when exposed to oxygen. Because of this, it doesn’t corrode as steel does. To further safeguard your metal against corrosion, manufacturers also anodize it. (1, 2)
Take a look at some of our related articles below.
- What size wire for 30 amps 200 feet
- How to cap off electrical wires
- How to run electrical wire in unfinished basement
