What’s the Right Multimeter Setting for a Car Battery Test? (Guide)

If you’re like me, you’ve probably scratched your head, wondering what the right multimeter setting is for a car battery test.

It’s a common question among car enthusiasts and DIY mechanics. The voltage range for a car battery falls between 15 and 20 volts. You can test your battery by setting your multimeter to the 20V DC range.

In this article, I’ll be demystifying this topic, providing you with the knowledge you need to use your multimeter confidently. We’ll dive into the correct settings, how to use them, and what to look for in your readings.

Adjusting Your Multimeter for a Car Battery Test

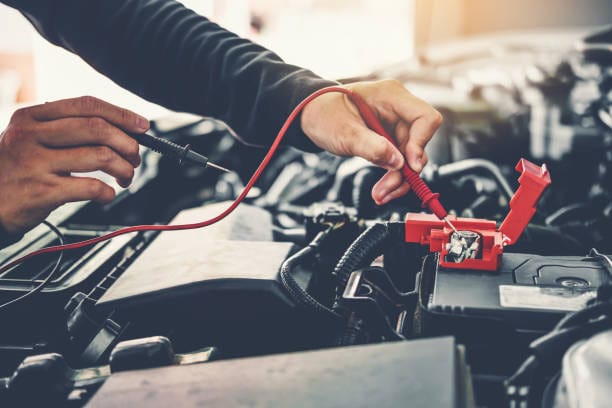

A man is using a multimeter to work on a car battery

Navigating the dials and digits on your multimeter can seem puzzling at first. Multimeters come in analog or digital versions, but the principle of setting them up for a car battery test is nearly identical.

You’ve to set your multimeter to DC voltage. Batteries, including our car battery, provide direct current instead of alternating current found in things like power sockets.

That little ‘DCV’ sign on your multimeter is your friend. If there are multiple DCV settings, go for the one the closest to, but higher than, 12 volts – usually, it’s the 20-volt setting.

Setting up a multimeter isn’t all that complicated; it’s just a question of learning the ropes. And now you have the directions in hand, so put it to practice!


Performing the Battery Test

Let’s break this down step-by-step. Think of it as a blueprint for ensuring your car battery is in top shape. Here we go:

Step 1: Prep the Battery for Testing

  • Turn on the headlights for about two minutes to eliminate any surface charge on the battery. This step is crucial for an accurate reading.

The car with the engine hood open
Video | Chris Fix

Step 2: Set Up Your Multimeter

  • Switch your multimeter to the 20-volt setting or something above 15 volts, which is ideal for testing a car battery. Ensure it’s set to measure DC voltage.

A person holding a multimeter while checking the car battery
Video | Chris Fix

Step 3: Connect the Multimeter to the Battery

  • Attach the red (positive) lead of the multimeter to the red (positive) terminal of the battery and the black (negative) lead to the black (negative) terminal.

A person using a multimeter to check the battery in a car with the appropriate multimeter setting
Video | Chris Fix

  • A healthy battery should read around 12.6 volts.

Interpreting the Results

Now that you’ve got the numbers, don’t be left scratching your head. Let’s decipher what they mean together.

Here’s a quick rundown:

Multimeter ReadingBattery Status
< 13.7 voltsNeeds recharge
13.7 – 14.7 voltsHealthy
> 14.7 voltsOvercharging

Seeing 13.7 to 14.7 volts on your multimeter shows a healthy battery. But hey, life’s not all full-charge batteries, right? So here’s what other readings might imply.

When cranking up the engine, your battery might need a good recharge if the reading is less than 13.7 volts. It’s telling you it’s been working hard, and it’s time for a quick power-up.

But don’t freak out yet; sometimes, even a low reading doesn’t mean it’s all gloom and doom. That weekend off-roading trip might have just taken a toll on your battery.

What if the multimeter shows a reading greater than 14.7 volts? That’s a red flag! Your charging system might be dishing out too much power to your battery. It’s like force-feeding power to your battery.

Bottom line – rely on your multimeter, but also pay heed to any changes in your car’s performance and bring it up with your trusted mechanic if you feel something’s wrong.


Comparing Battery Testing Methods

There are a few ways to test car batteries, but I want to focus on why using a multimeter is often your best bet compared to other popular methods.

Multimeter vs. Power Probe

  • Power Probe: A nifty tool that applies voltage to a circuit and can test continuity. It’s pretty cool for quick checks.
  • Multimeter: It not only checks for voltage but also measures it precisely. Plus, it can test amperage and resistance, giving you a more comprehensive picture of your battery’s health.
  • Why Multimeter Wins: Precision is key here; the multimeter gives you exact readings, helping you diagnose issues more accurately.

Multimeter vs. Load Tester

  • Load Tester: This device applies a significant load to the battery, testing its ability to hold up under pressure. It’s like putting your battery through a mini boot camp.
  • Multimeter: While it doesn’t apply a load, it accurately measures voltage and current without extra stress on the battery.
  • Why Multimeter Wins: Safety and Simplicity. Multimeters are less stressful on your battery and easier for most DIYers to use effectively.

Multimeter vs. Built-in Car Diagnostics

  • Built-in Car Diagnostics: Some modern cars have systems that alert you to battery issues. Super high-tech, right?
  • Multimeter: Gives you a chance to manually check the battery, offering a hands-on, detailed understanding of its condition.
  • Why Multimeter Wins: Personal touch. You get a real-time, direct look at your battery’s status, which onboard diagnostics might not always provide in detail.

So, there you have it. While each method has its merits, the multimeter stands out for its precision, versatility, and user-friendliness. It’s like having a Swiss Army knife for your car’s electrical system.


Troubleshooting Guide for Using a Multimeter on a Car Battery

When you’re working with a multimeter on your car battery, it’s like being the detective in your garage – you’re solving the mystery of your car’s electrical health.

Don’t sweat it! I’ve been there, and I know you can tackle these issues head-on with the right approach. So, I’ve compiled a handy troubleshooting guide to help you navigate these common hiccups.

ProblemPossible CauseSolution
Inconsistent ReadingsLoose ConnectionsEnsure the multimeter probes are firmly attached to the battery terminals. Wiggle them a bit to get a good contact.
Difficulty Locating TerminalsUnclear Battery MarkingsLook for the “+” and “-” symbols on the battery. The positive terminal is often slightly larger or marked in red.
Multimeter Not Powering OnDead Multimeter BatteryReplace the multimeter’s internal battery. Always have a spare, just in case.
No Reading DisplayedWrong Multimeter SettingDouble-check that the multimeter is set to the correct DC voltage range. For car batteries, this is usually 20V.
Extremely Low ReadingDrained or Faulty BatteryThe multimeter might need servicing or replacing if the needle jumps around erratically.
Erratic Needle (Analog Multimeter)Internal Meter FaultThe multimeter might need servicing or replacing if the needle jumps around erratically.

Remember, when working with car batteries and multimeters, safety is paramount. Keep these tips handy, and you’ll be a pro at diagnosing your car battery’s health quickly.


Avoiding Common Pitfalls: Mastering Multimeter Use in Car Battery Testing

Let’s talk about those common slip-ups people make when using a multimeter for car battery tests. Trust me, even the best of us can get tripped on the simple stuff. So, let’s iron out these wrinkles and get you testing like a pro.

  • Mixing Up the Probes – Getting these two crossed is like trying to fit a square peg in a round hole – it just won’t give you the right result. Always connect the red probe to the positive terminal of your battery and the black one to the negative.
  • Wrong Multimeter Setting – Setting your multimeter incorrectly is like measuring something in inches when you need centimeters. You’ve got to set it to the DC voltage setting – usually, the 20V mark does the trick for car batteries. Using the wrong setting can throw your readings off; we don’t want that.
  • Not Turning Off the Car – This might sound like a no-brainer, but make sure your car is off before you start testing. It’s like painting a room with furniture still in it – you’re just making life harder for yourself. Plus, it’s safer this way.
  • Forgetting to Test on a Clean Surface – Dirty or corroded battery terminals are like seeing through muddy glasses. They can mess with your readings. Before you test, give those terminals a good clean. A bit of elbow grease can save you a headache later.
  • Ignoring Safety Precautions – Working with car batteries means you’ve got to gear upright. No shortcuts here. Wear gloves and safety glasses. It’s essential to have the right safety gear when swinging a hammer.
  • Not Checking for Loose Connections – Loose connections can give you wonky readings. Make sure your probes are snugly attached to the battery terminals. It’s like making sure your nails are hammered in right – a loose one can throw the whole thing off.
  • Testing in Unsafe Conditions – Last but not least, avoid testing your battery in wet conditions. Water and electricity are like oil and water – they don’t mix. Stay safe and dry when you’re doing your tests.

Everyone makes mistakes, but it’s all about learning from them. Remember these tips, and you’ll be testing your car battery like a seasoned pro in no time. Stay safe, stay precise, and happy testing!


Frequently Asked Questions

  • Can A Multimeter Test Battery Health Accurately?
    • Using a multimeter for testing your battery is like using a tape measure for woodworking. It gives precise, reliable readings that correctly tell you much about your battery’s health. Just make sure you’re using it.
  • Can I Harm My Battery or Car by Using a Multimeter Incorrectly?
    • Generally, using a multimeter incorrectly won’t harm your car or battery. It’s like using the wrong wrench – it might not work, but it won’t cause damage. However, always avoid short-circuiting the battery terminals with the probes. Safety first!
  • Why Is My Multimeter Reading Inconsistent With My Car’s Built-In Gauge?
    • Multimeter readings can sometimes differ from your car’s built-in gauge. It’s like using two watches – they might show slightly different times. This can be due to various factors, including the accuracy of the car’s gauge or the multimeter’s calibration. Always double-check with a reliable multimeter.
  • Should I Disconnect My Battery Before Testing With a Multimeter?
    • There is no need to disconnect. Just make sure the car is off. Disconnecting the battery is like turning off the main water valve before fixing a faucet – unnecessary for this job.
  • How Do I Test My Battery’s Cold Cranking Amps With a Multimeter?
    • A standard multimeter can’t measure cold cranking amps directly – it’s like measuring temperature with a ruler. You’ll need a specialized load tester for that. However, voltage readings can give you a general idea of battery health.
