Is the Black Wire Positive or Negative? (Wiring Guide)

One common question about the black wire: Is it positive or negative?

Well, it’s not a one-size-fits-all answer, and it depends on the type of circuit you’re dealing with. The black wire is for the negative current if you use a DC circuit, while in an AC circuit, the black wire is positive.

So, let’s dive in and unravel this colorful mystery of the black wire.

Various Types of Wire Color Codes

Navigating through the maze of wire color codes is like piecing together a puzzle in each of my building projects.

Whether you’re working with DC or AC power, knowing your wires is crucial for safety and efficiency. Let me walk you through the wire color codes I’ve encountered in my DC and AC systems jobs.

Wire Color Codes for DC Power

DC power, or Direct Current, is the straightforward guy in the electrical world. It’s like a one-way street, powering batteries and solar cells. But remember, it’s not a long-distance runner like AC power. In my time, I’ve used a rectifier more than once to convert AC to DC for specific projects.

Here are the wire color codes for DC power.

Red wires are your go-getters, carrying the positive current.

The black wire is your steady hand, handling the negative current.

And if you come across a ground wire in a DC circuit, it’s usually white or gray.

I recall working on a solar panel installation where this color coding was key to getting things right.

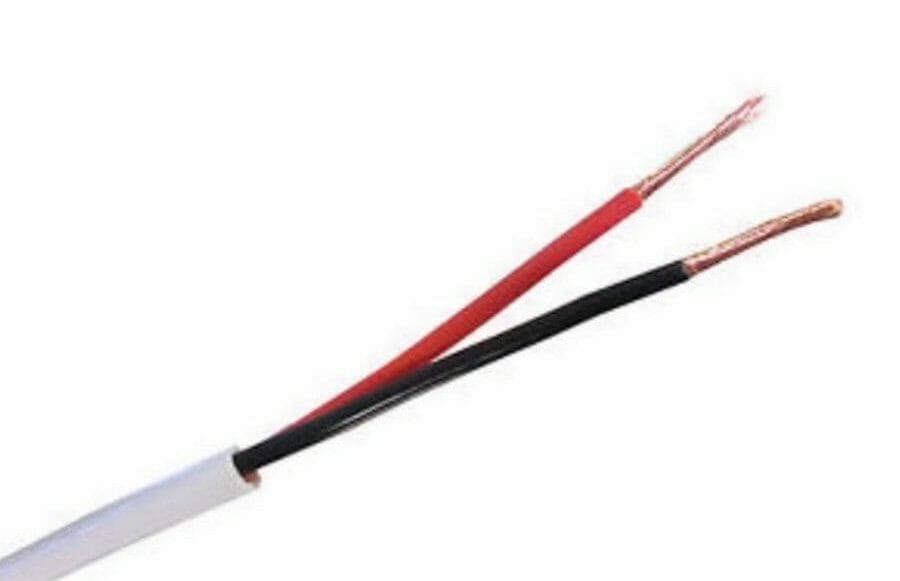

insulated red and black wire with coil stripped at the tips
Video | LDSreliance

Keep in mind: Most often, DC circuits have three wires. But, sometimes, you’ll only get two wires. The missing wire is the ground connection.

Wire Color Codes for AC Power

Let’s switch gears to AC or Alternating Current, the common power type in homes and businesses. Thanks to its waveform, it can travel distances that DC can’t match.

Dealing with AC power, especially in three-phase systems, becomes more complex. I’ve worked on large-scale installations where understanding these phases was essential.

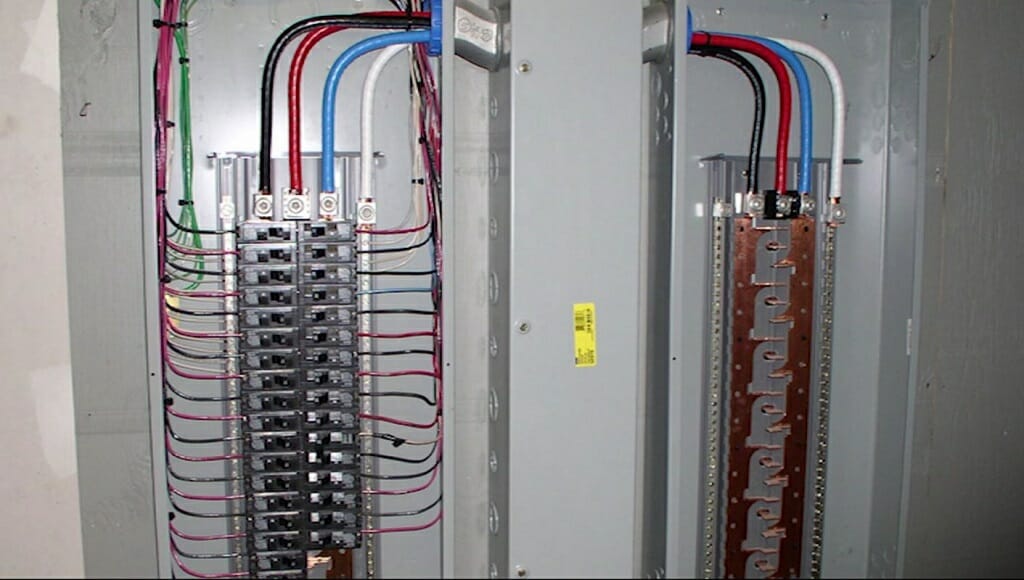

Three-phase power wires
Video | Electrician U

You’ve got three hot wires – black for Phase 1, red for Phase 2, and blue for Phase 3. The white wire is neutral, and the ground wire is either green or green with yellow stripes.

In a three-phase setup, you’re juggling more power and efficiency. I remember an industrial project where getting the phase wires right was crucial for running the machinery smoothly.

Remember: The black, red, and blue wires are hot in a three-phase connection. However, in a single-phase connection, you can only find four wires: red, black, white, and green.

Understanding these color codes isn’t just about following rules; it’s about ensuring safety and making your project successful. I remind myself of these color codes when approaching a new electrical job.


Global Standards Comparison: A World of Wire Colors

A close up of several different colored wires with stripped tips

Let me tell you, hopping from one country to another in my building adventures has taught me that wire color standards are as varied as the places themselves.

Let me give you a quick tour around the globe and share some of my experiences with these colorful wiring standards.

United States

In the US, it’s pretty straightforward. Black is your hot wire, white is neutral, and green or bare copper plays the ground’s role.

I’ve spent countless hours in the US working with these standards, which are like second nature to me now.

Europe

Now, Europe likes to mix things up. I was thrown for a loop when I first worked on a project in France. Here, the live wire is brown, not black.

Neutral is blue, and the ground wire is this green-yellow combo. It took some getting used to, but it’s all about adapting to local standards.

Australia

Down under in Australia, they follow a pattern similar to that of Europe. The active wire is brown, and the neutral wire is light blue. The ground wire is either green or green-yellow.

I remember working on a beach house in Sydney; the color schemes were an interesting challenge.

Canada

Canada keeps things pretty similar to the US, with black for live, white for neutral, and green for ground.

But, just like back home, I always double-check, especially in older buildings where the wiring might not follow the current standards.

United Kingdom

With its unique charm, the UK has its own set of rules. Live wires are brown (similar to Europe), neutral wires are blue, and the ground wire is green and yellow. I haven’t had the chance to tackle a project in the UK yet, but it’s on my radar!

It’s not just about getting the job done right; it’s about doing it safely. And in the ever-changing world of wiring, a little knowledge goes a long way.


Troubleshooting Tips: Navigating Common Wiring Issues

Navigating the complex world of electrical wiring can sometimes feel like a wild ride at a theme park. Over the years, I’ve encountered various wiring mishaps – some just minor hiccups, others a bit more hair-raising.

Below is a table that combines the troubleshooting tips and my personal experiences dealing with common wiring problems. These insights should help both DIY enthusiasts and professionals tackle these issues with a bit more confidence.

Common ProblemTroubleshooting Tips
Incorrectly Wired OutletTest the outlet with a multimeter. If the readings are off, check the wiring against standard color codes.
I once had an outlet that wouldn’t power up a light. A quick multimeter test revealed reversed wiring during installation.
Light Fixture Not WorkingEnsure the fixture’s black wire is connected to the power source’s black wire and the white to white.
Encountered a ceiling fan installed with reverse wiring. Correcting the wire connections got it working smoothly.
Blown Fuses When Using AppliancesCheck if the appliance’s wiring is correct. Incorrect polarity can cause short circuits.
A kitchen remodel had a dishwasher that kept tripping the breaker. I found the black and white wires were swapped at the source.
Flickering LightsInspect for loose connections, especially if black (hot) and white (neutral) wires are reversed.
Flickering lights in a basement project led to the discovery of a loose neutral wire. Securing it properly solved the issue.
GFCI Outlet Keeps TrippingEnsure the line (hot) and load wires are connected correctly. Miswiring can cause frequent trips.
In a bathroom update, the GFCI wouldn’t stay on. Swapping the line and load wires corrected the problem.

Remember, accuracy and caution are key when it comes to electrical wiring. A little detective work with your trusty multimeter and a solid understanding of wire color codes can go a long way in keeping your circuits running safely and efficiently.


Frequently Asked Questions

  • What Should I Do If I’m Unsure About a Wire’s Polarity?
    • If you’re unsure, it’s best to consult a professional electrician. Working with electricity can be dangerous, and it’s crucial to be certain before proceeding.
  • What Precautions Should I Take Before Working with Electrical Wires?
    • Before working with electrical wires, ensure the power is off, use insulated tools, wear protective gear, and double-check the wire’s polarity with a multimeter.
  • Can the Color of a Wire Change Over Time?
    • Yes, the color of a wire can fade or change due to aging, exposure to elements, or overheating. This is why physical inspection alone isn’t reliable; always test with a multimeter.
  • Are There Any Special Considerations for Wiring in Wet or Outdoor Environments?
    • Yes, it’s crucial to use wires and equipment rated for such conditions in wet or outdoor environments to prevent corrosion and electrical hazards.
  • If I Find a Black Wire Connected to a Positive Terminal, What Should I Do?
    • If you find a black wire connected to a positive terminal, it’s important to verify the entire circuit to understand its configuration. When in doubt, seek professional advice.
